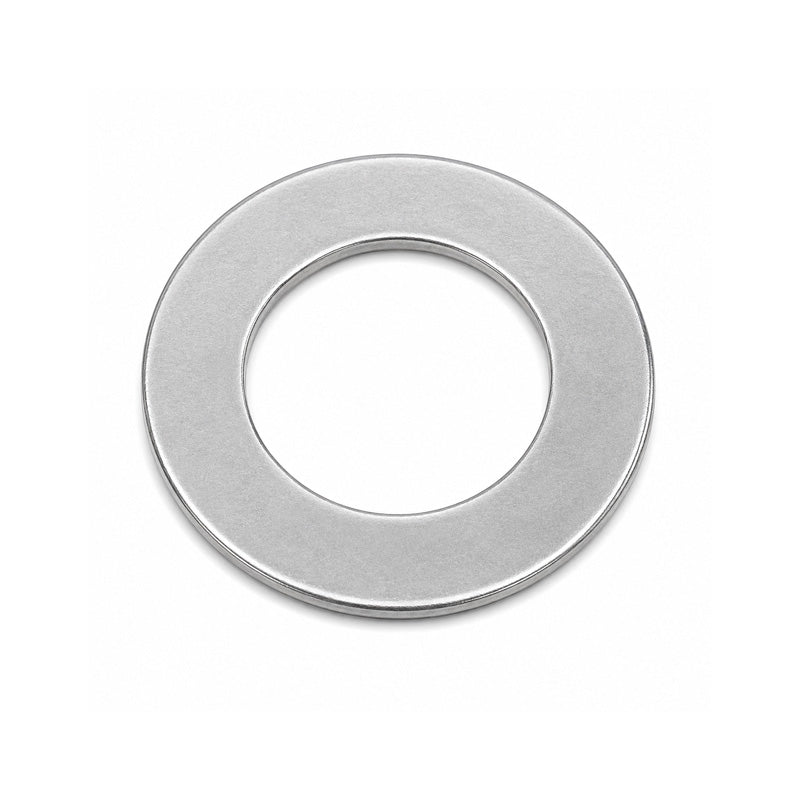

• AS2035 Major Brand Thrust Washer Series AS 20x35x1mm
1 1

SKU: AS2035-MB

AS2035 Major Brand Thrust Washer Series AS 20x35x1mm

AS2035 Major Brand Thrust Washer Series AS 20x35x1mm
$1.13 ex VAT
$1.13 ex VAT
Sale Sold out

In stock

Price Break
10+ $0.47
20+ $0.36
50+ $0.26
100+ $0.21
500+ $0.17
1000+ $0.13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
AS Series Thrust Washers: Made of spring steel (equivalent to AISI 1074 / SAE 5165) these thrust washers are hardened and polished and are only 1mm thick. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy.
Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive.
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
20mm
Outside Diameter:
35mm
Width:
1mm
Technical
d 20mm
d1 35mm
D 35mm
D1 21mm
B 1mm
r1r2 0.3mm
Material Spring Steel (AISI 1074 / SAE 5165)
Weight 13 g
