• AS4565 Major Brand Thrust Washer Series AS 45x65x1mm
1 1

SKU: AS4565-MB

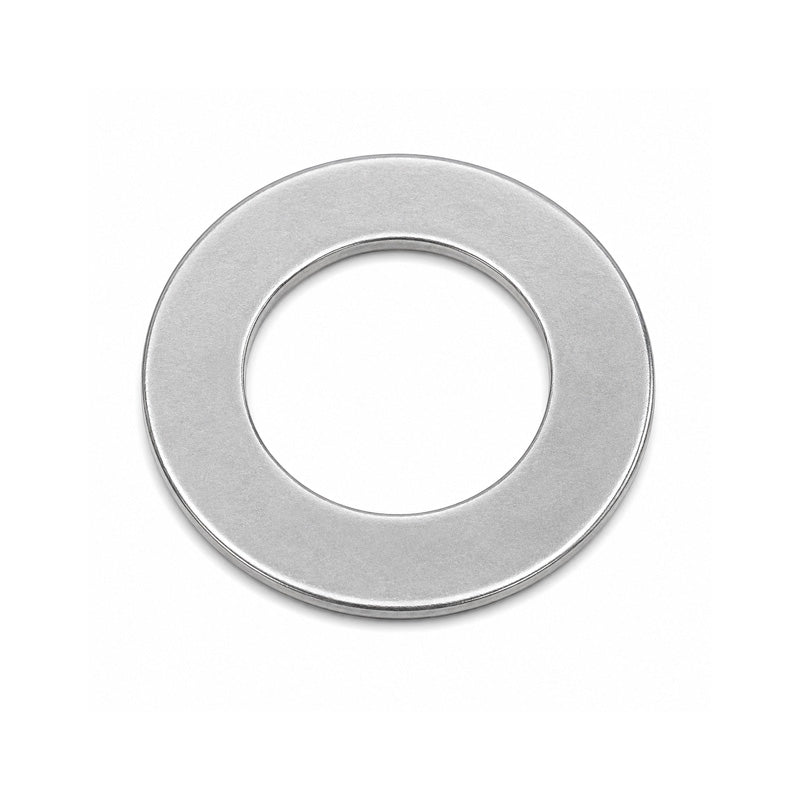

AS4565 Major Brand Thrust Washer Series AS 45x65x1mm

AS4565 Major Brand Thrust Washer Series AS 45x65x1mm
$2.86 ex VAT
$2.86 ex VAT
Sale Sold out

In stock

Price Break
5+ $1.51
10+ $1.29
20+ $1.18
50+ $1.08
100+ $0.86
500+ $0.75
1000+ $0.65

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
AS Series Thrust Washers: Made of spring steel (equivalent to AISI 1074 / SAE 5165) these thrust washers are hardened and polished and are only 1mm thick. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy.
Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive.
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
45mm
Outside Diameter:
65mm
Width:
1mm
Technical
d 45mm
d1 65mm
D 65mm
D1 47mm
B 1mm
r1r2 0.6mm
Material Spring Steel (AISI 1074 / SAE 5165)
Weight 50 g
