SKU: AS80105-EU

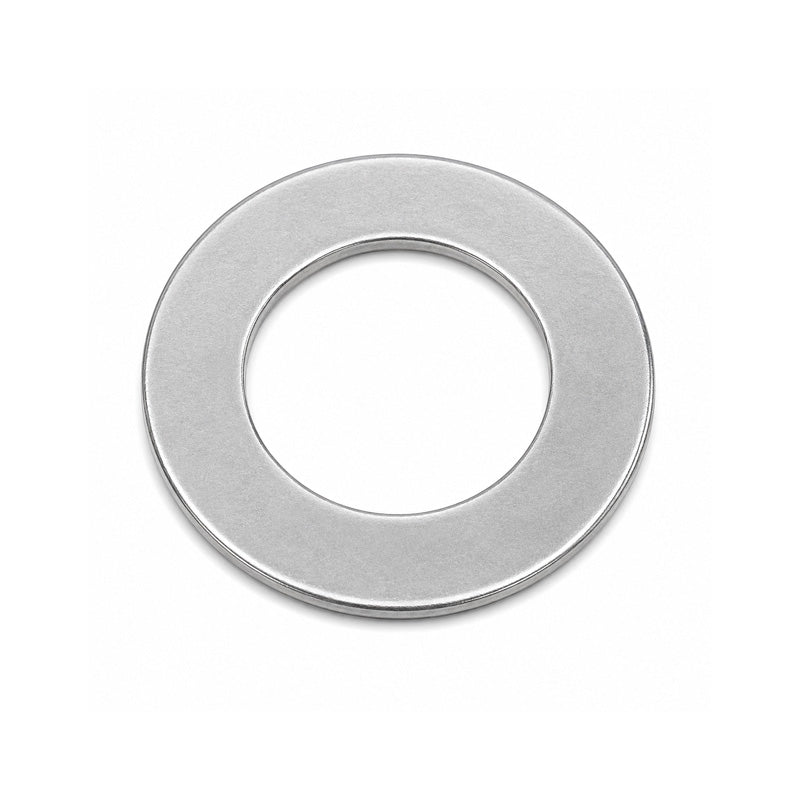

AS80105 Budget Thrust Washer Series AS 80x105x1mm
AS80105 Budget Thrust Washer Series AS 80x105x1mm
Regular price
$5.37
ex VAT
Regular price
Sale price
$5.37
ex VAT
In stock
Price Break
10+
$3.59
19+
$3.39
29+
$3.35
39+
$3.31
49+
$3.27
74+
$3.23
99+
$3.03
199+
$2.99
249+
$2.95
499+
$2.91
999+
$2.82
Quantity
Couldn't load pickup availability
Description
Description
|
Budget AS Series Thrust Washers: Made of spring steel (equivalent to AISI 1074 / SAE 5165) these thrust washers are hardened and polished and are only 1mm thick. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 105mm
- Width:
- 1mm
Technical
Technical
| d | 80mm |
|---|---|
| d1 | 105mm |
| D | 105mm |
| D1 | 82mm |
| B | 1mm |
| r1r2 | 1mm |
| Material | Spring Steel (AISI 1074 / SAE 5165) |
| Weight | 150 g |
