SKU: ASPF206-103-NTN

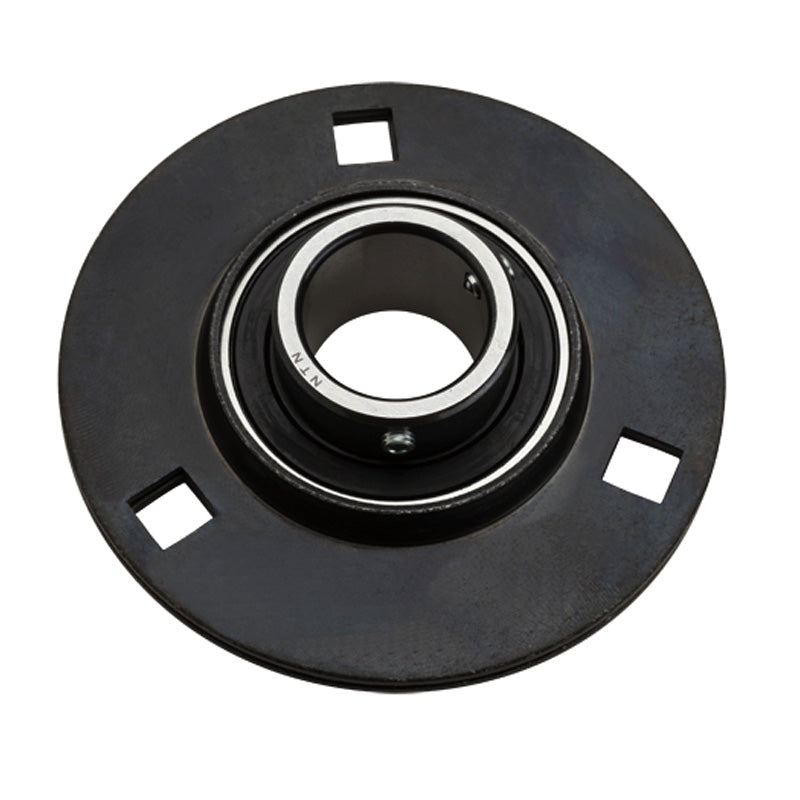

NTN ASPF206-103 Round 3 Bolt Pressed Steel Bearing Housing with 1-3/16 inch Insert - Allow 2-3 Days
NTN ASPF206-103 Round 3 Bolt Pressed Steel Bearing Housing with 1-3/16 inch Insert - Allow 2-3 Days
Out of stock
Description
Description
|
3 Bolt Round Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has grub screws for securing to the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing Note: Bearing units of 40mm / 1-1/2 or larger have 4 bolt holes |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Style:
- ASPF
- Pitch Circle Diameter:
- 3-9/16 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 1-3/16 inch |
| H | 4-7/16 inch |
| J | 3-9/16 inch |
| A<sub>1</sub> | 0.205 inch |
| N | 7/16 inch |
| A | 23/32 inch |
| B | 1.1417 inch |
| S | 0.315 inch |
| H<sub>1</sub> min | 2-51/64 inch |
| Fixing bolt | 3/8 inch |
| --- | Load rating |
| Max load recommended radial | 1100 lbf |
| Max load recommended axial | 550 lbf |
| --- | Unit information |
| Mass | 0.9 lbs |
