SKU: ASPF208-NTN
NTN ASPF208 Round 4 Bolt Pressed Steel Bearing Housing with 40mm Insert - Allow 2-3 Days
NTN ASPF208 Round 4 Bolt Pressed Steel Bearing Housing with 40mm Insert - Allow 2-3 Days
Regular price
$41.20
ex VAT
Regular price
Sale price
$41.20
ex VAT
In stock
Price Break
3+
$30.69
4+
$29.45
9+
$28.83
19+
$27.90
49+
$27.28
99+
$25.73
499+
$21.70
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
ASPF200 Series 4 Bolt Pressed Steel Round Housings: Of galvanized steel construction these housings are a simple economical housed housing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. Benefits: Cost-effective housing assembly |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- ASPF
- Pitch Circle Diameter:
- 119mm
Technical
Technical

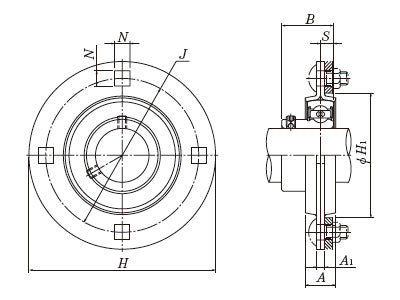

| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| H | 148mm |
| J | 119mm |
| A<sub>1</sub> | 6.8mm |
| N | 13.5mm |
| A | 21mm |
| B | 38mm |
| S | 9mm |
| H<sub>1</sub> min | 91mm |
| Fixing bolt | M12 |
| --- | Load rating |
| Max load recommended radial | 7000 N |
| Max load recommended axial | 3500 N |
| --- | Unit information |
| Mass | 0.9 kg |
