SKU: ASPFL202-010-NTN

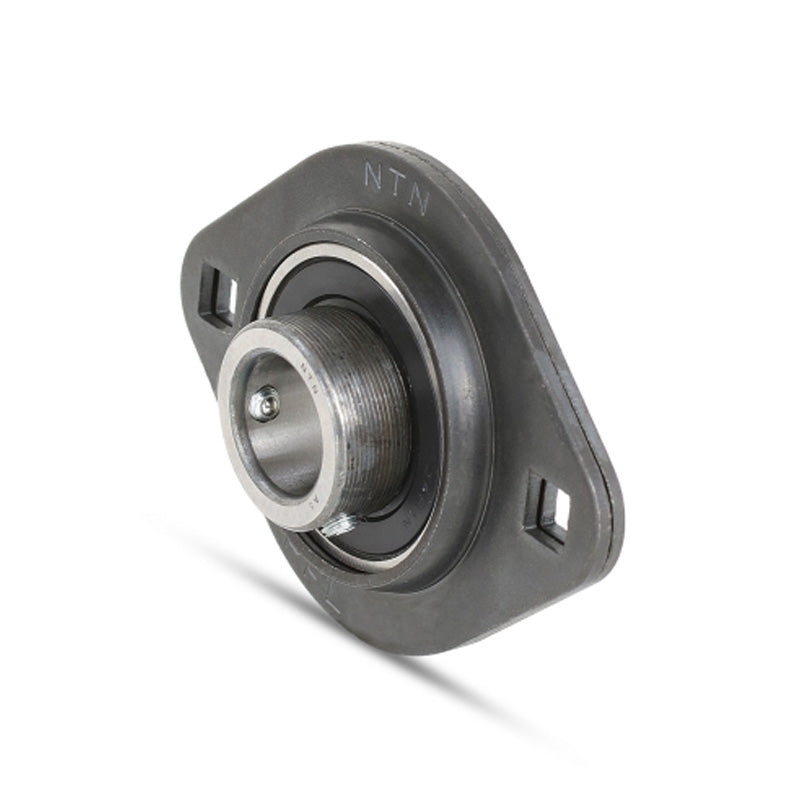

NTN ASPFL202-010 Oval 2 Bolt Pressed Steel Bearing Housing with 5/8 inch Insert - Allow 2-3 Days

NTN ASPFL202-010 Oval 2 Bolt Pressed Steel Bearing Housing with 5/8 inch Insert - Allow 2-3 Days

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 5/8 inch
H 3-3/16 inch
J 2-1/2 inch
A<sub>1</sub> 0.157 inch
N 9/32 inch
A 9/16 inch
L 2-5/16 inch
B 0.8661 inch
S 0.236 inch
H<sub>1</sub> min 1-59/64 inch
Fixing bolt 1/4 inch
--- Load rating
Max load recommended radial 600 lbf
Max load recommended axial 300 lbf
--- Unit information
Mass 0.4 lbs
