SKU: ASPFL206-103-NTN

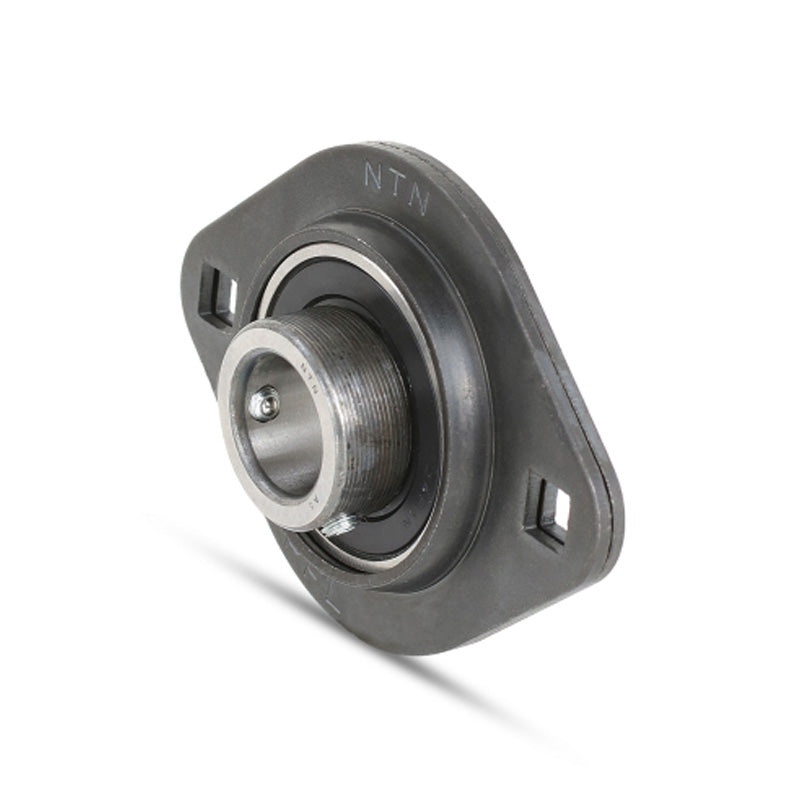

NTN ASPFL206-103 Oval 2 Bolt Pressed Steel Bearing Housing with 1-3/16 inch Insert - Allow 2-3 Days

NTN ASPFL206-103 Oval 2 Bolt Pressed Steel Bearing Housing with 1-3/16 inch Insert - Allow 2-3 Days

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 1-3/16 inch
H 4-7/16 inch
J 3-9/16 inch
A<sub>1</sub> 0.205 inch
N 7/16 inch
A 23/32 inch
L 3-5/16 inch
B 1.1417 inch
S 0.315 inch
H<sub>1</sub> min 2-51/64 inch
Fixing bolt 3/8 inch
--- Load rating
Max load recommended radial 1100 lbf
Max load recommended axial 550 lbf
--- Unit information
Mass 0.9 lbs
