SKU: AX11150190-MB

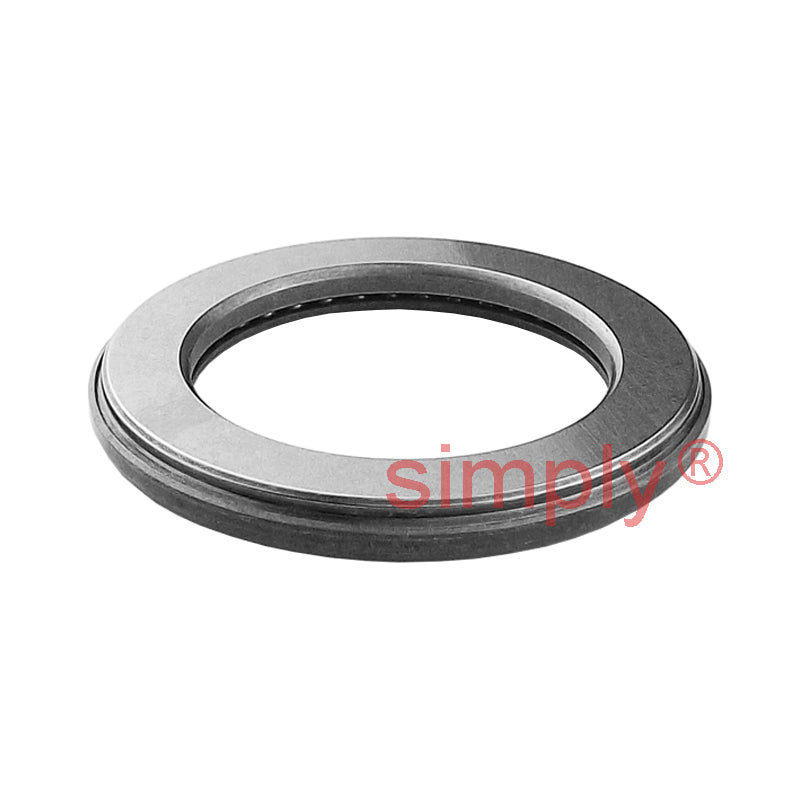

Major Brand AX11150190 Thick Needle Roller Thrust Bearing 150x190x11mm Allow 2-3 Days
Major Brand AX11150190 Thick Needle Roller Thrust Bearing 150x190x11mm Allow 2-3 Days
Regular price
$556.03
ex VAT
Regular price
Sale price
$556.03
ex VAT
In stock
Price Break
10+
$372.45
19+
$351.53
29+
$347.34
39+
$343.16
49+
$338.97
74+
$334.79
99+
$313.86
199+
$309.68
249+
$305.49
499+
$301.31
999+
$292.94
Quantity
Couldn't load pickup availability
Share this product
Description
Description

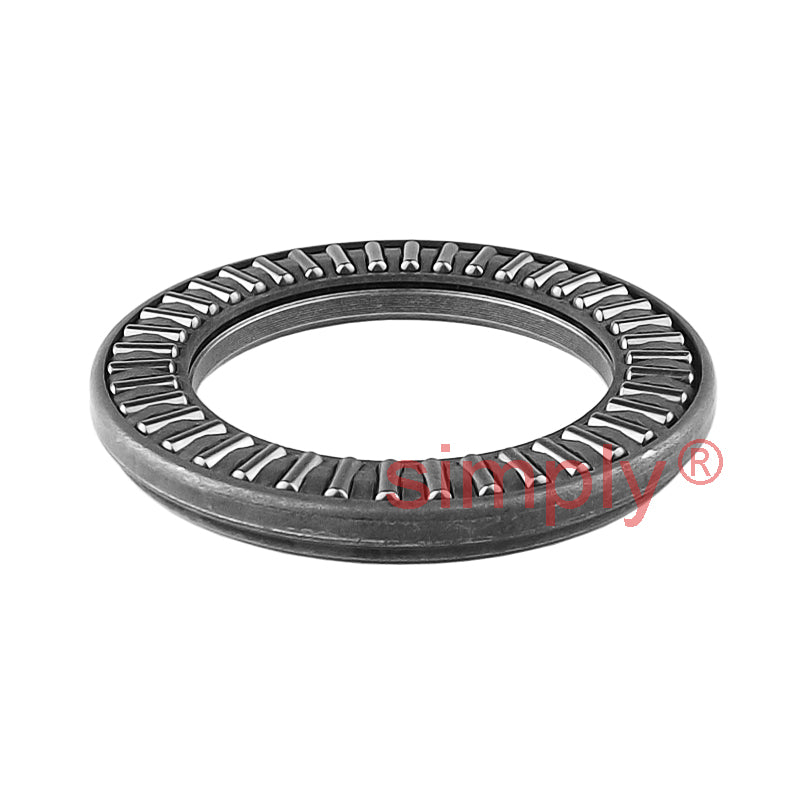

AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 150mm
- Outside Diameter:
- 190mm
- Width:
- 11mm
Technical
Technical
| Dc1 | 150mm |
|---|---|
| D | 190mm |
| B1 | 11mm |
| Eb | 155mm |
| Ea | 181mm |
| Dynamic load | 115 kN |
| Static load | 830 kN |
| Speed rating in oil | 1500 rpm |
| Mass | 0.71 kg |
