SKU: AX11160200-MB

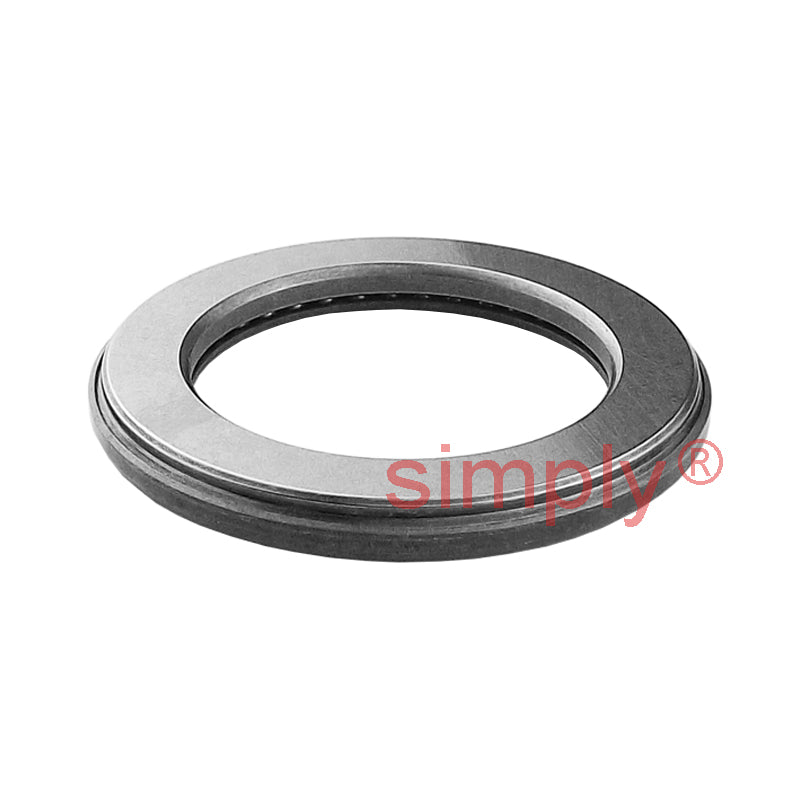

Major Brand AX11160200 Thick Needle Roller Thrust Bearing 160x200x11mm Allow 2-3 Days
Major Brand AX11160200 Thick Needle Roller Thrust Bearing 160x200x11mm Allow 2-3 Days
Regular price
$2,509.46
ex VAT
Regular price
Sale price
$2,509.46
ex VAT
In stock
Price Break
10+
$1,680.91
19+
$1,586.48
29+
$1,567.59
39+
$1,548.70
49+
$1,529.82
74+
$1,510.93
99+
$1,416.50
199+
$1,397.61
249+
$1,378.72
499+
$1,359.84
999+
$1,322.06
Quantity
Couldn't load pickup availability
Share this product
Description
Description

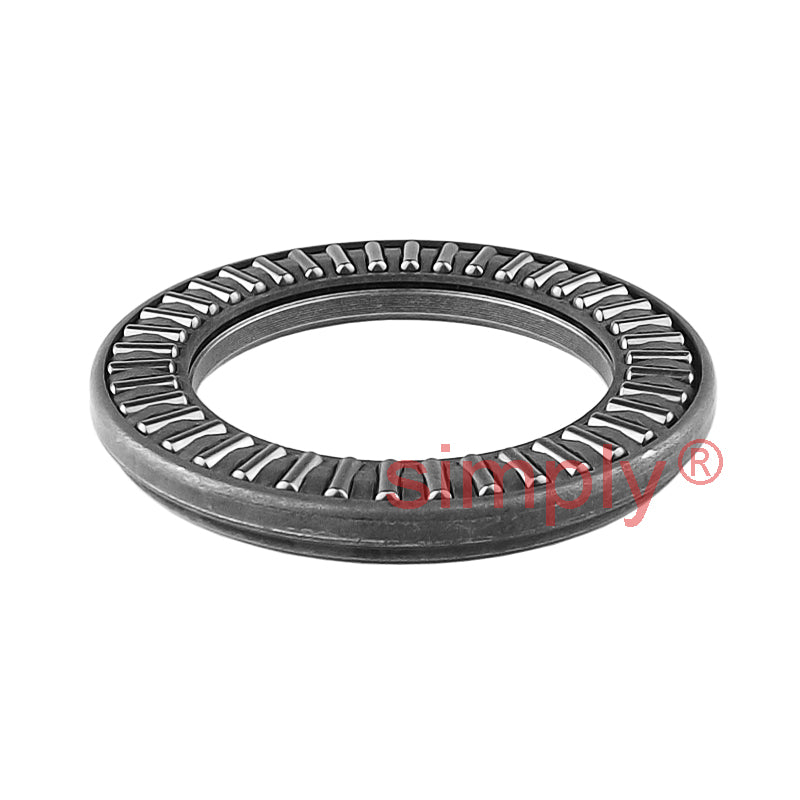

AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 160mm
- Outside Diameter:
- 200mm
- Width:
- 11mm
Technical
Technical
| Dc1 | 160mm |
|---|---|
| D | 200mm |
| B1 | 11mm |
| Eb | 165mm |
| Ea | 191mm |
| Dynamic load | 118 kN |
| Static load | 870 kN |
| Speed rating in oil | 1400 rpm |
| Mass | 0.76 kg |
