SKU: AX4.590120-MB

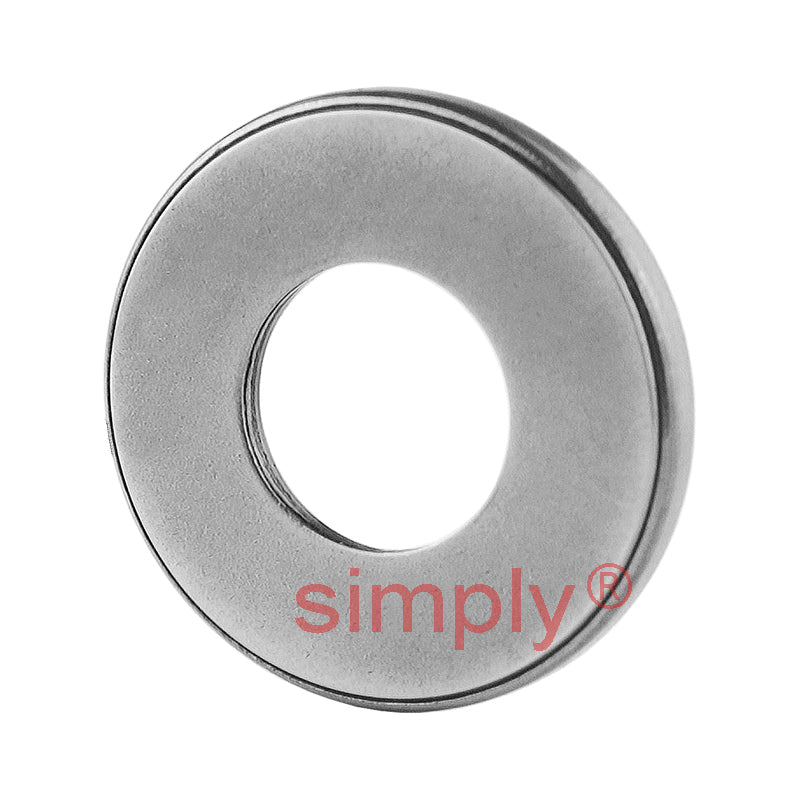

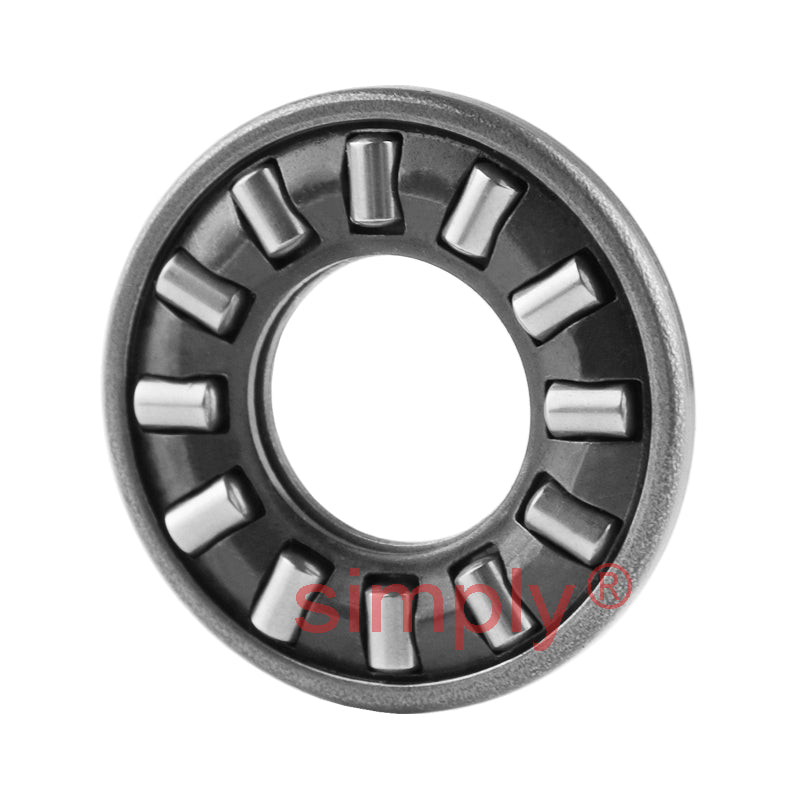

Major Brand AX4.590120 Thin Needle Roller Thrust Bearing 90x120x4.5mm - Allow 2-3 Days
Major Brand AX4.590120 Thin Needle Roller Thrust Bearing 90x120x4.5mm - Allow 2-3 Days
Out of stock
Share this product
Description
Description
AX Thin Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are manufactured with an integrated washer and a uniform cage that reliably guides many needle rollers. The rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevent any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 120mm
- Width:
- 4.5mm
Technical
Technical
| Dc1 | 90mm |
|---|---|
| D | 120mm |
| B1 | 4.5mm |
| Eb | 94.2mm |
| Ea | 112.9mm |
| Dynamic load | 59 kN |
| Static load | 360 kN |
| Speed rating in oil | 2400 rpm |
| Mass | 0.117 kg |
