SKU: AX41528-MB

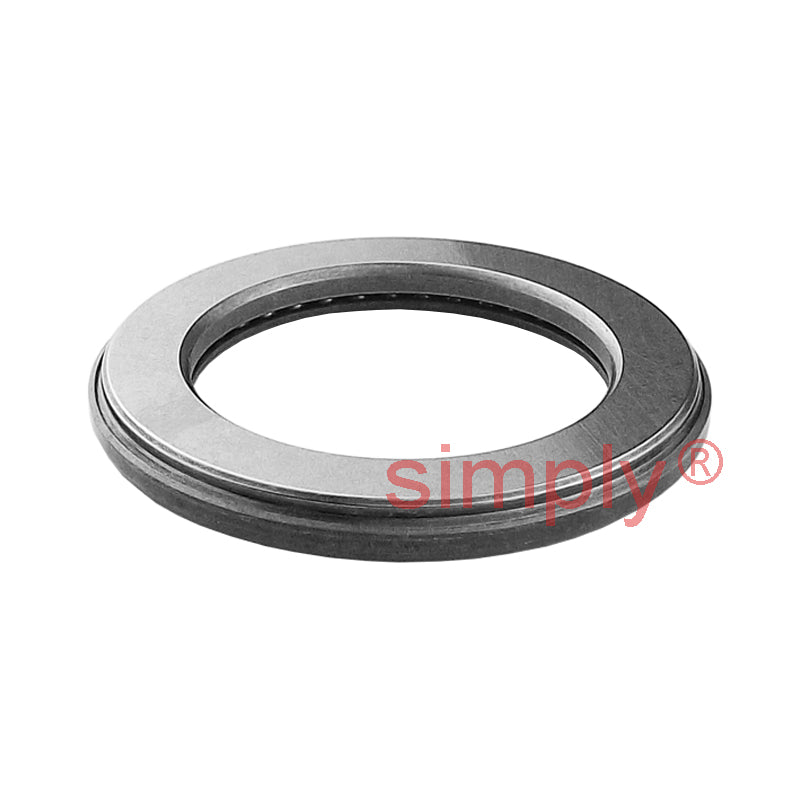

Major Brand AX41528 Thick Needle Roller Thrust Bearing 15x28x4mm Allow 2-3 Days
Major Brand AX41528 Thick Needle Roller Thrust Bearing 15x28x4mm Allow 2-3 Days
Regular price
$57.55
ex VAT
Regular price
Sale price
$57.55
ex VAT
In stock
Price Break
10+
$38.55
19+
$36.38
29+
$35.95
39+
$35.51
49+
$35.08
74+
$34.65
99+
$32.48
199+
$32.05
249+
$31.62
499+
$31.18
999+
$30.32
Quantity
Couldn't load pickup availability
Share this product
Description
Description

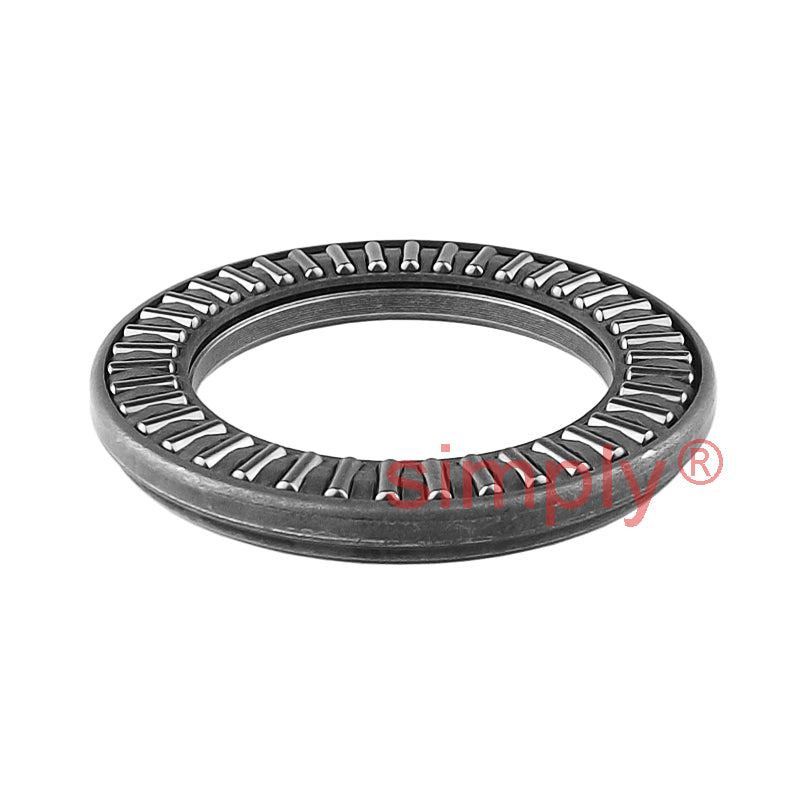

AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 28mm
- Width:
- 4mm
Technical
Technical
| Dc1 | 15mm |
|---|---|
| D | 28mm |
| B1 | 4mm |
| Eb | 17mm |
| Ea | 24.6mm |
| Dynamic load | 7.4 kN |
| Static load | 20 kN |
| Speed rating in oil | 11500 rpm |
| Mass | 0.009 kg |
