SKU: AX41730-MB

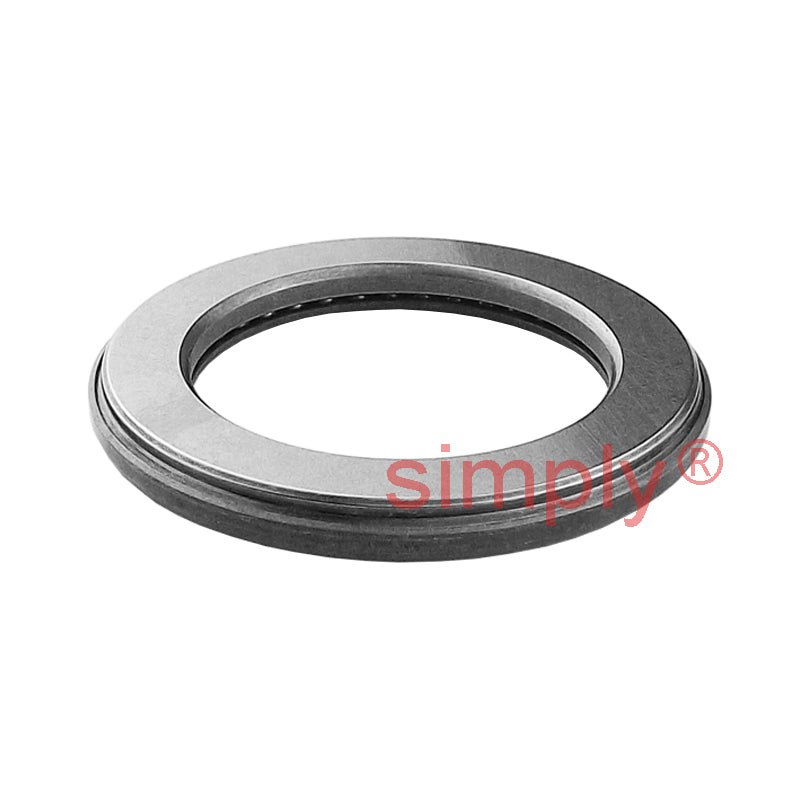

Major Brand AX41730 Thick Needle Roller Thrust Bearing 17x30x4mm Allow 2-3 Days
Major Brand AX41730 Thick Needle Roller Thrust Bearing 17x30x4mm Allow 2-3 Days
Regular price
$59.11
ex VAT
Regular price
Sale price
$59.11
ex VAT
In stock
Price Break
10+
$39.59
19+
$37.36
29+
$36.92
39+
$36.47
49+
$36.03
74+
$35.58
99+
$33.36
199+
$32.91
249+
$32.47
499+
$32.02
999+
$31.13
Quantity
Couldn't load pickup availability
Share this product
Description
Description

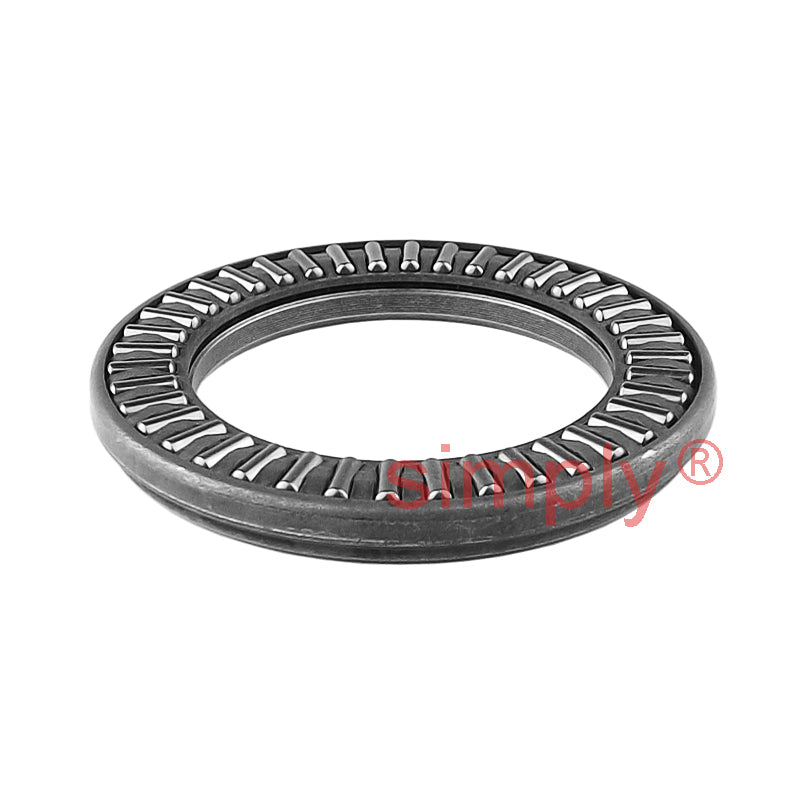

AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 30mm
- Width:
- 4mm
Technical
Technical
| Dc1 | 17mm |
|---|---|
| D | 30mm |
| B1 | 4mm |
| Eb | 19mm |
| Ea | 26.6mm |
| Dynamic load | 7.8 kN |
| Static load | 22 kN |
| Speed rating in oil | 10500 rpm |
| Mass | 0.01 kg |
