SKU: AX41932-MB

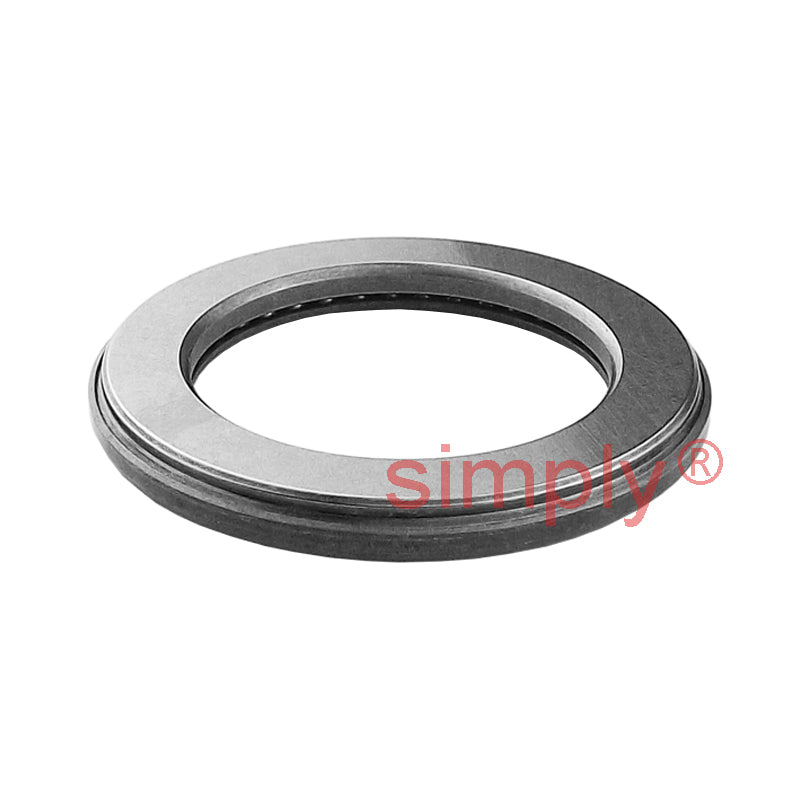

Major Brand AX41932 Thick Needle Roller Thrust Bearing 19x32x4mm Allow 2-3 Days
Major Brand AX41932 Thick Needle Roller Thrust Bearing 19x32x4mm Allow 2-3 Days
Regular price
$60.80
ex VAT
Regular price
Sale price
$60.80
ex VAT
In stock
Price Break
10+
$40.73
19+
$38.44
29+
$37.98
39+
$37.52
49+
$37.07
74+
$36.61
99+
$34.32
199+
$33.86
249+
$33.41
499+
$32.95
999+
$32.03
Quantity
Couldn't load pickup availability
Share this product
Description
Description

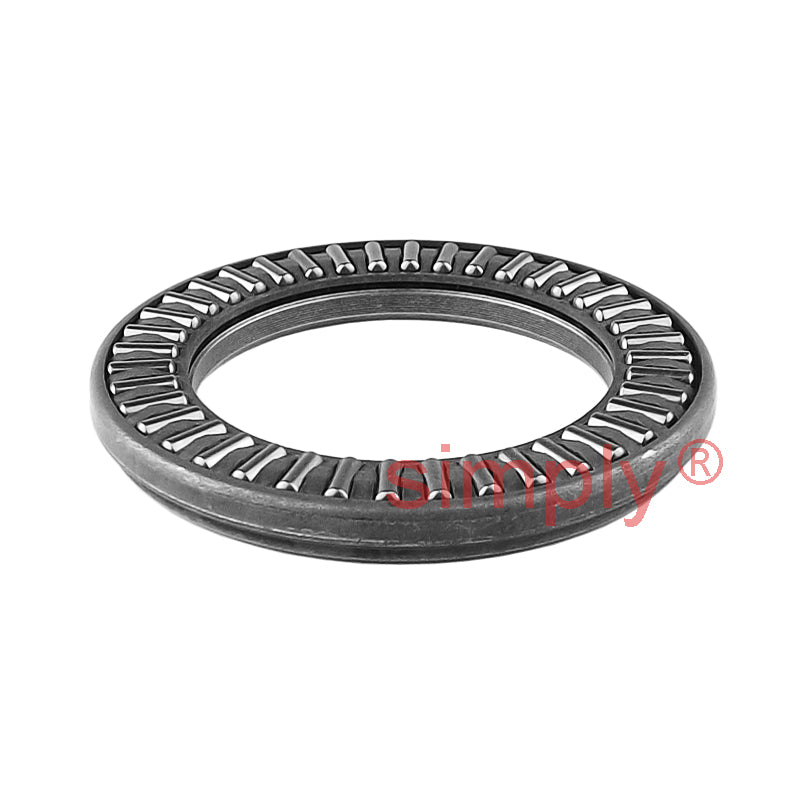

AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 19mm
- Outside Diameter:
- 32mm
- Width:
- 4mm
Technical
Technical
| Dc1 | 19mm |
|---|---|
| D | 32mm |
| B1 | 4mm |
| Eb | 21mm |
| Ea | 28.6mm |
| Dynamic load | 8 kN |
| Static load | 23.3 kN |
| Speed rating in oil | 10000 rpm |
| Mass | 0.013 kg |
