SKU: AX513-MB

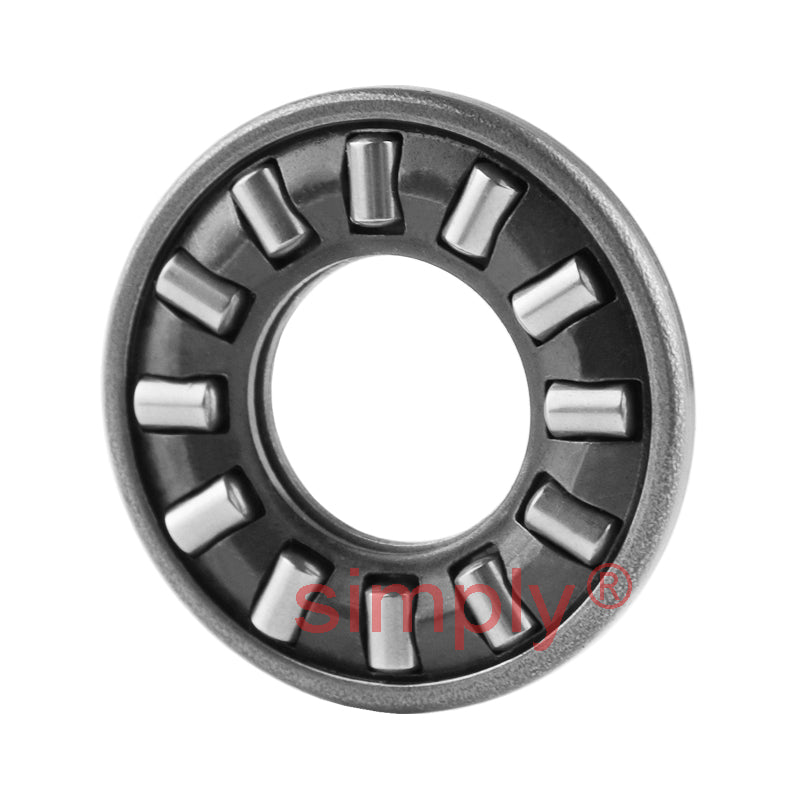

Major Brand AX513 Thin Needle Roller Thrust Bearing 5x13x2.3mm
Major Brand AX513 Thin Needle Roller Thrust Bearing 5x13x2.3mm
Regular price
$14.27
ex VAT
Regular price
Sale price
$14.27
ex VAT
In stock
Price Break
10+
$9.56
19+
$9.02
29+
$8.92
39+
$8.81
49+
$8.70
74+
$8.59
99+
$8.06
199+
$7.95
249+
$7.84
499+
$7.73
999+
$7.52
Quantity
Couldn't load pickup availability
Share this product
Description
Description

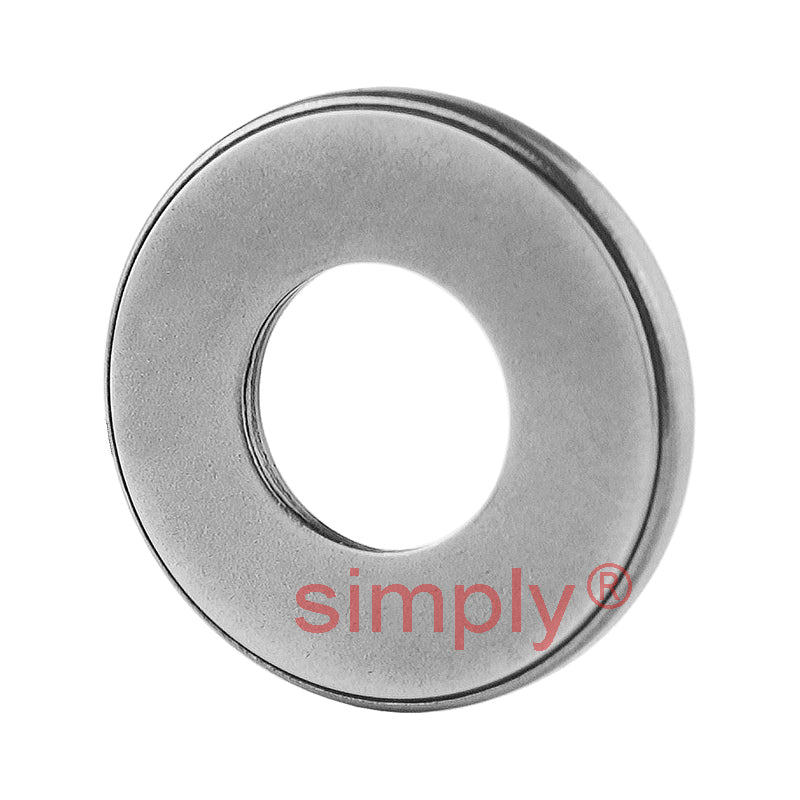

AX Thin Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are manufactured with an integrated washer and a uniform cage that reliably guides many needle rollers. The rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevent any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 5mm
- Outside Diameter:
- 13mm
- Width:
- 2.3mm
Technical
Technical
| Dc1 | 5mm |
|---|---|
| D | 13mm |
| B1 | 2.3mm |
| Eb | 6.3mm |
| Ea | 10.9mm |
| Dynamic load | 3 kN |
| Static load | 5.7 kN |
| Speed rating in oil | 25000 rpm |
| Mass | 0.001 kg |
