SKU: AX54060-MB

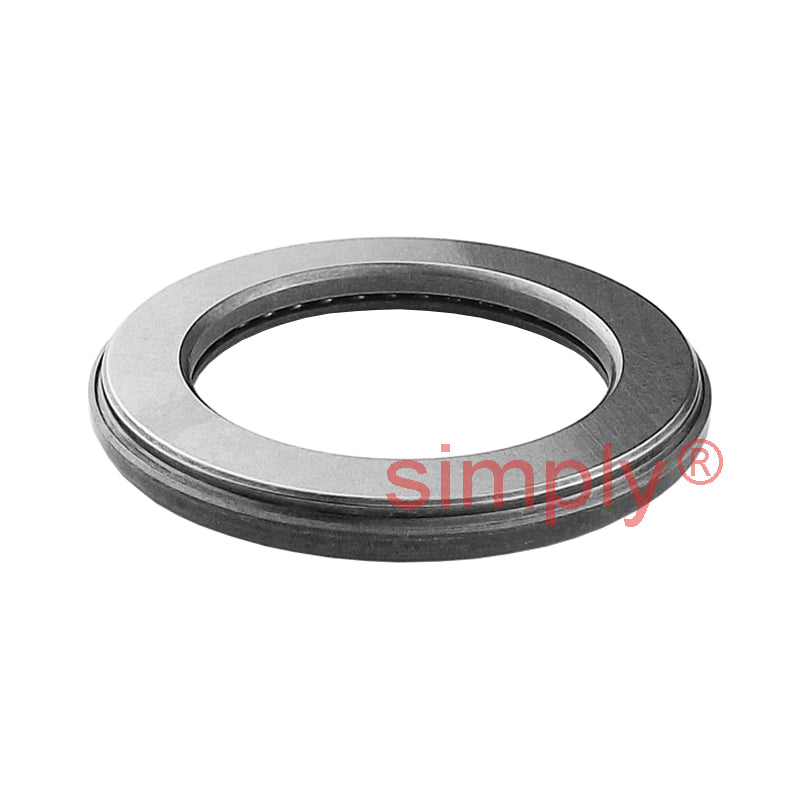

Major Brand AX54060 Thick Needle Roller Thrust Bearing 40x60x5mm Allow 2-3 Days
Major Brand AX54060 Thick Needle Roller Thrust Bearing 40x60x5mm Allow 2-3 Days
Regular price
$97.73
ex VAT
Regular price
Sale price
$97.73
ex VAT
In stock
Price Break
10+
$65.46
19+
$61.78
29+
$61.04
39+
$60.31
49+
$59.57
74+
$58.84
99+
$55.16
199+
$54.42
249+
$53.69
499+
$52.95
999+
$51.48
Quantity
Couldn't load pickup availability
Share this product
Description
Description

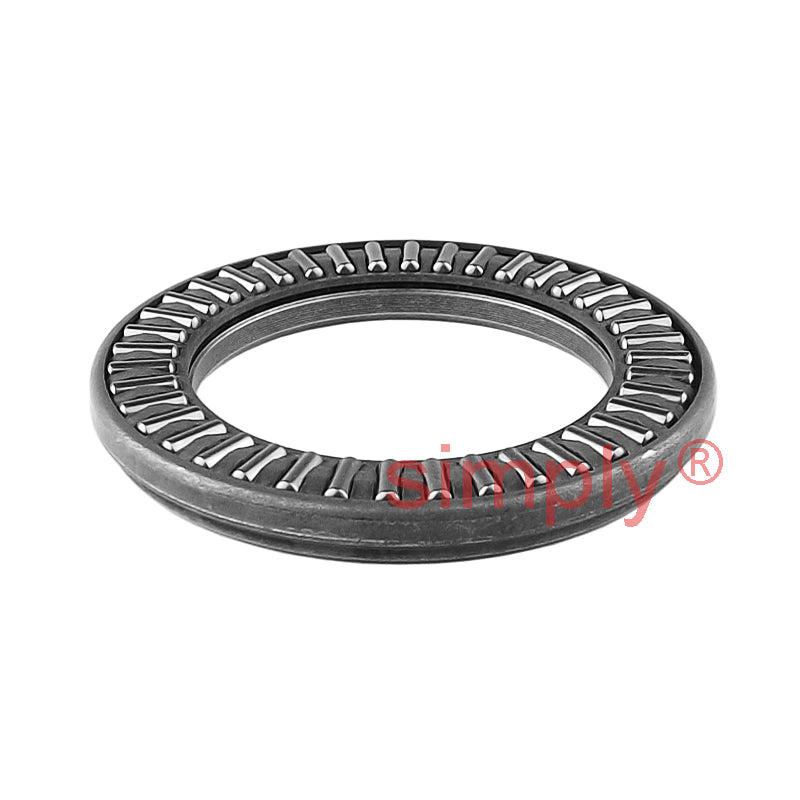

AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 60mm
- Width:
- 5mm
Technical
Technical
| Dc1 | 40mm |
|---|---|
| D | 60mm |
| B1 | 5mm |
| Eb | 43mm |
| Ea | 54.9mm |
| Dynamic load | 20.4 kN |
| Static load | 96 kN |
| Speed rating in oil | 5000 rpm |
| Mass | 0.046 kg |
