SKU: AX66085-MB

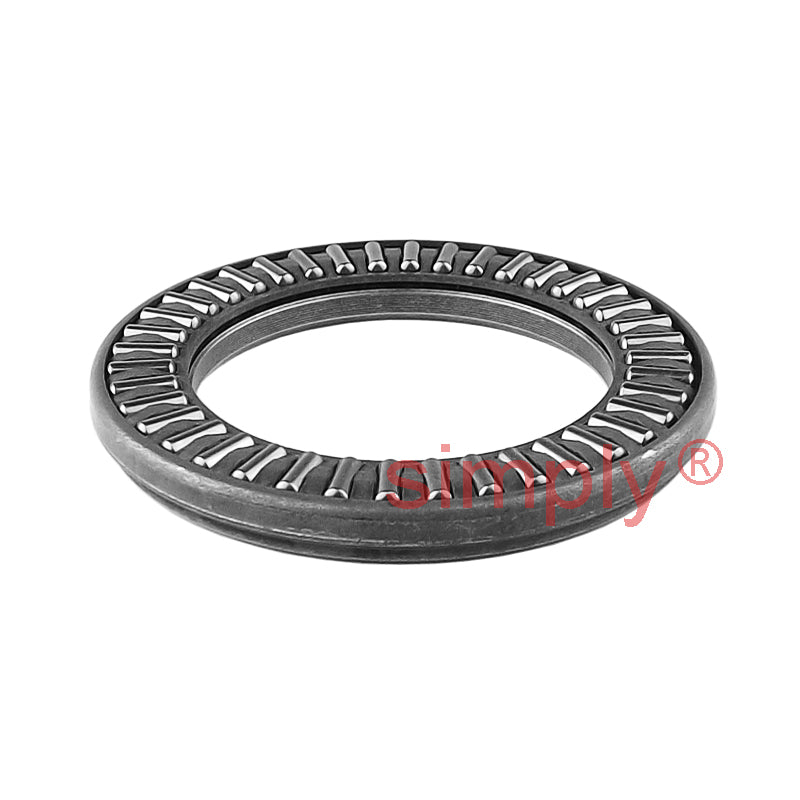

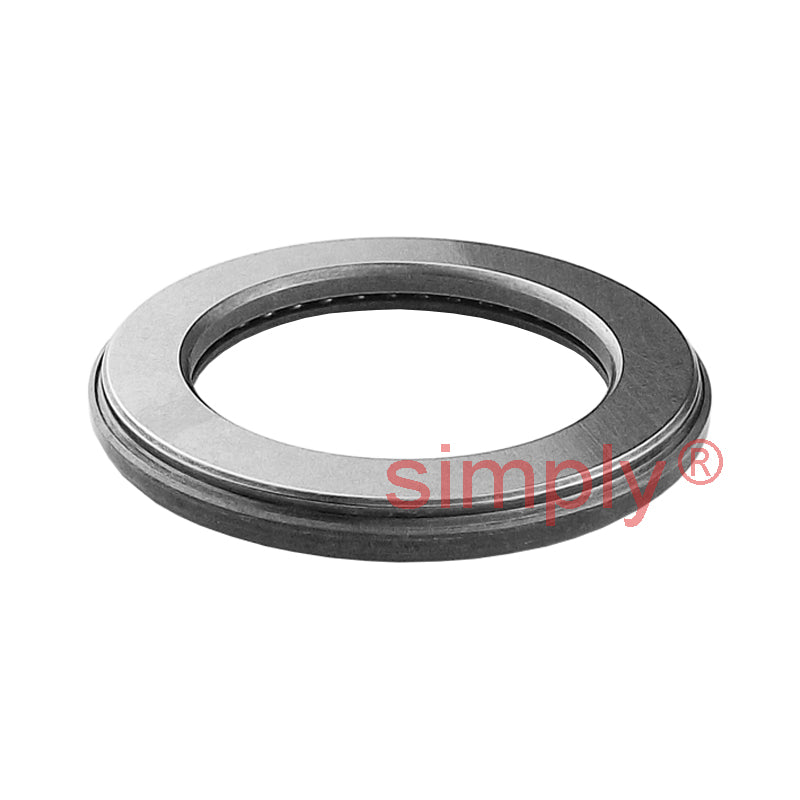

Major Brand AX66085 Thick Needle Roller Thrust Bearing 60x85x6mm Allow 2-3 Days
Major Brand AX66085 Thick Needle Roller Thrust Bearing 60x85x6mm Allow 2-3 Days
Regular price
$296.50
ex VAT
Regular price
Sale price
$296.50
ex VAT
In stock
Price Break
10+
$198.60
19+
$187.44
29+
$185.21
39+
$182.98
49+
$180.75
74+
$178.52
99+
$167.36
199+
$165.13
249+
$162.90
499+
$160.67
999+
$156.20
Quantity
Couldn't load pickup availability
Share this product
Description
Description
AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 85mm
- Width:
- 6mm
Technical
Technical
| Dc1 | 60mm |
|---|---|
| D | 85mm |
| B1 | 6mm |
| Eb | 63.5mm |
| Ea | 79.2mm |
| Dynamic load | 31.5 kN |
| Static load | 193 kN |
| Speed rating in oil | 3500 rpm |
| Mass | 0.106 kg |
