SKU: AXK0821-EU-AS0821-EU

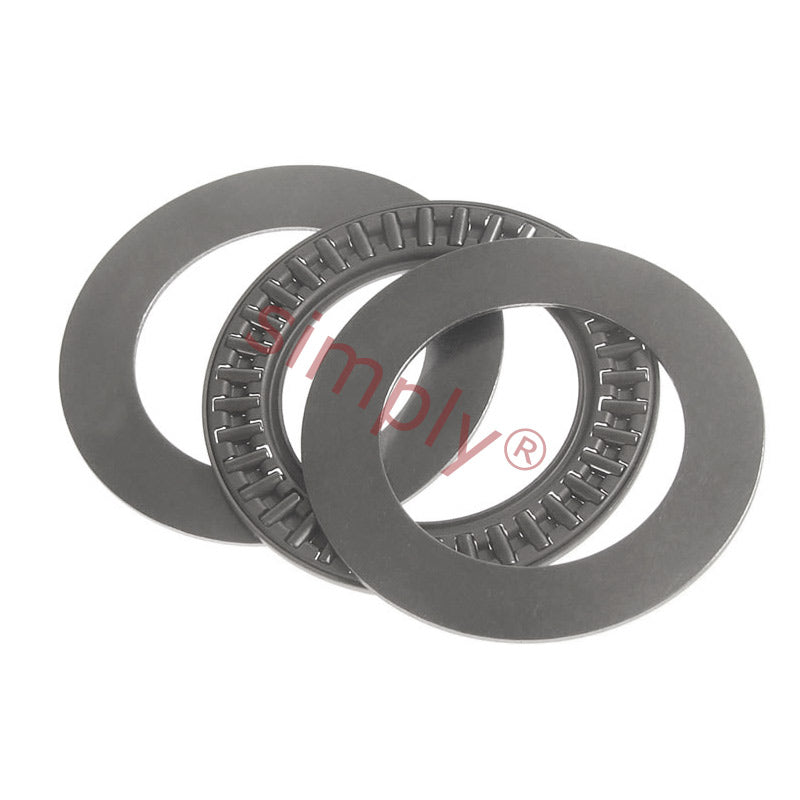

AXK0821/AS0821 Budget Needle Roller Cage with 2 AS Washers 8x21x4mm
AXK0821/AS0821 Budget Needle Roller Cage with 2 AS Washers 8x21x4mm
Regular price
$4.53
ex VAT
Regular price
Sale price
$4.53
ex VAT
In stock
Price Break
10+
$3.04
19+
$2.86
29+
$2.83
39+
$2.80
49+
$2.76
74+
$2.73
99+
$2.56
199+
$2.52
249+
$2.49
499+
$2.46
999+
$2.39
Quantity
Couldn't load pickup availability
Description
Description
|
Budget AXK Series Needle Roller Thrust Bearings Complete: Needle roller and cage thrust assemblies complete with 2 AS series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 21mm
- Width:
- 4mm
Technical
Technical
| d | 8mm |
|---|---|
| D | 21mm |
| Dw | 4mm |
| Ea | 9mm |
| Eb | 20mm |
| Dynamic load C | 7200 N |
| Static load Co | 20000 N |
| Fatigue load limit Pu | 2200 N |
| Speed in grease | 4300 rpm |
| Speed in oil | 5600 rpm |
| Weight (Assembly) | 2 g |
| D | 21mm |
| B | 2.75mm |
| r1r2 min | 0.3mm |
| Weight LS GS WS | 4 g |
| Weight AS | 2 g |
| Raceway washer | LS0821 |
| Thrust washer | AS0821 |
