SKU: AXK0821-MB-AS0821-MB

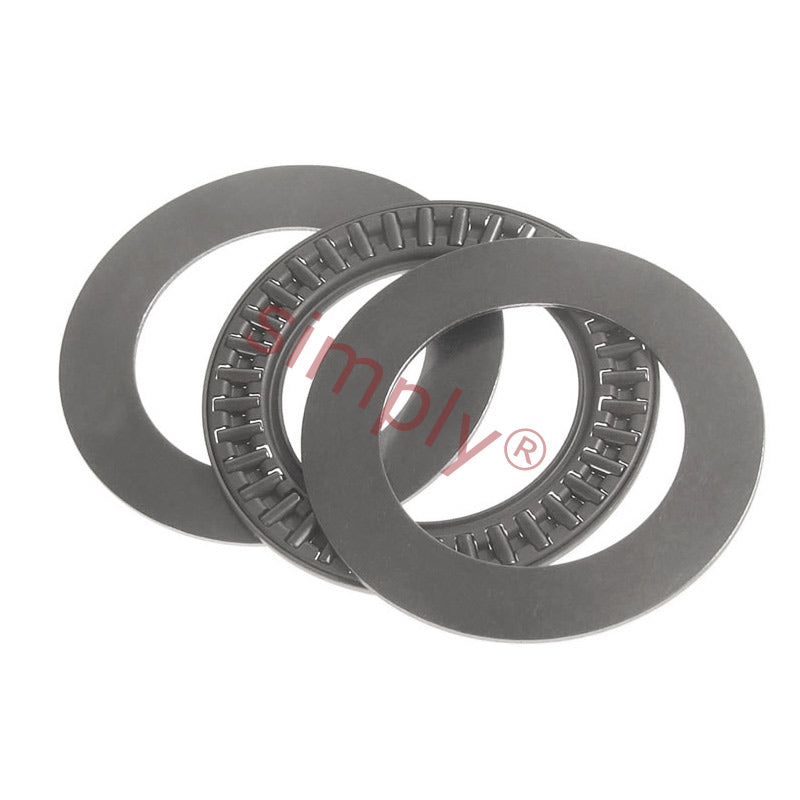

AXK0821 Major Branded Needle Roller Cage with 2 AS0821 Washers 8x21x4mm
AXK0821 Major Branded Needle Roller Cage with 2 AS0821 Washers 8x21x4mm
Regular price
$5.73
ex VAT
Regular price
Sale price
$5.73
ex VAT
In stock
Price Break
10+
$3.84
19+
$3.62
29+
$3.58
39+
$3.54
49+
$3.50
74+
$3.45
99+
$3.24
199+
$3.19
249+
$3.15
499+
$3.11
999+
$3.02
Quantity
Couldn't load pickup availability
Description
Description
|
AXK Series Needle Roller Thrust Bearings Complete: Needle roller and cage thrust assemblies complete with 2 AS series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 21mm
- Width:
- 4mm
Technical
Technical
| d | 8mm |
|---|---|
| D | 21mm |
| Dw | 4mm total (2 washers at 1mm each) |
| Ea | 9mm |
| Eb | 20mm |
| Dynamic load | 7200 N |
| Static load | 20000 N |
| Fatigue load limit Pu | 2200 N |
| Speed in grease | 4300 rpm |
| Speed in oil | 5600 rpm |
| Weight (assembly) | 2 g |
| D | 21mm |
| B | 2.75mm |
