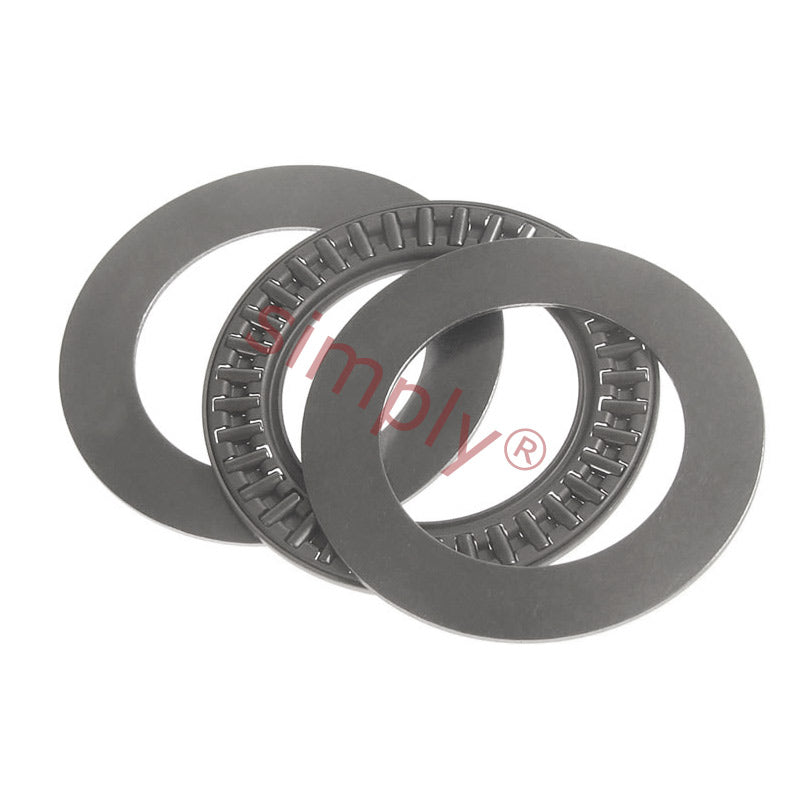

• AXK100135/AS100135 Budget Needle Roller Cage with 2 AS Washers 100x135x6mm
1 1

SKU: AXK100135-EU-AS100135-EU

AXK100135/AS100135 Budget Needle Roller Cage with 2 AS Washers 100x135x6mm

AXK100135/AS100135 Budget Needle Roller Cage with 2 AS Washers 100x135x6mm
$56.04 ex VAT
$56.04 ex VAT
Sale Sold out

In stock

Price Break
10+ $37.54
19+ $35.43
29+ $35.01
39+ $34.59
49+ $34.17
74+ $33.75
99+ $31.64
199+ $31.21
249+ $30.79
499+ $30.37
999+ $29.53

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Budget AXK Series Needle Roller Thrust Bearings Complete: Needle roller and cage thrust assemblies complete with 2 AS series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence.
Benefits: Cost effective thrust solution, wide range, low profile, high load bearing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
100mm
Outside Diameter:
135mm
Width:
6mm
Technical
d 100mm
D 135mm
Dw 6mm
Ea 105mm
Eb 133mm
Dynamic load C 76500 N
Static load Co 560000 N
Fatigue load limit Pu 65500 N
Speed in grease 850 rpm
Speed in oil 1200 rpm
Weight (Assembly) 105 g
d1 135mm
D 135mm
D1 102mm
B 7mm
r1r2 min 1mm
Weight LS GS WS 350 g
Weight AS 50 g
Raceway washer LS100135
Thrust washer AS100135
Shaft washer WS81120
Housing washer GS81120
