SKU: AXK100135-MB-AS100135-MB

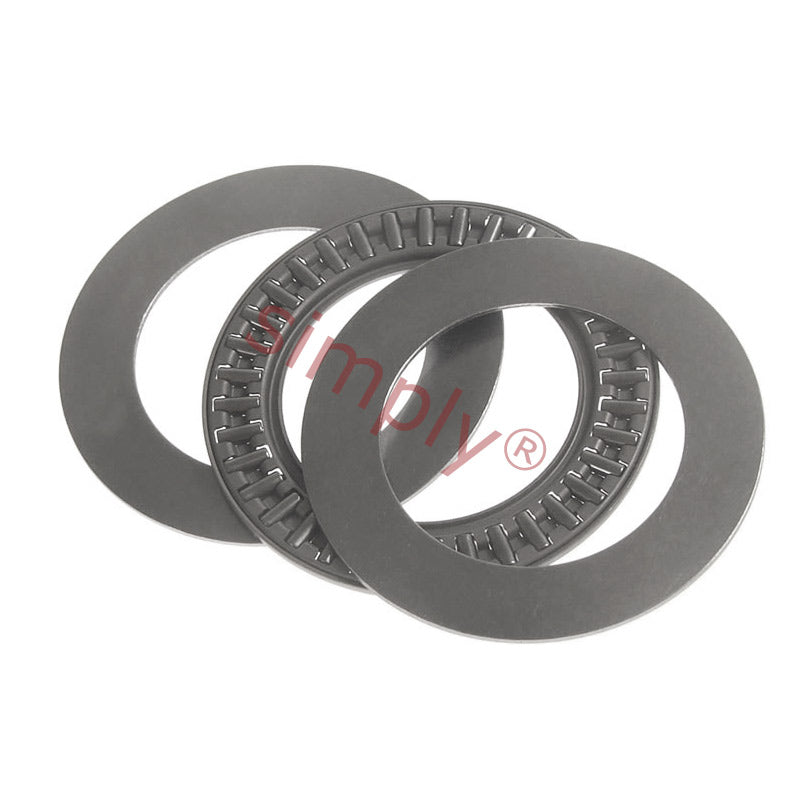

AXK100135 Major Branded Needle Roller Cage with 2 AS100135 Washers 100x135x6mm
AXK100135 Major Branded Needle Roller Cage with 2 AS100135 Washers 100x135x6mm
Regular price
$79.28
ex VAT
Regular price
Sale price
$79.28
ex VAT
In stock
Price Break
10+
$53.11
19+
$50.12
29+
$49.53
39+
$48.93
49+
$48.33
74+
$47.74
99+
$44.75
199+
$44.16
249+
$43.56
499+
$42.96
999+
$41.77
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
AXK Series Needle Roller Thrust Bearings Complete: Needle roller and cage thrust assemblies complete with 2 AS series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 135mm
- Width:
- 6mm
Technical
Technical
| d | 100mm |
|---|---|
| D | 135mm |
| Dw | 6mm total (2 washers at 1mm each) |
| Ea | 105mm |
| Eb | 133mm |
| Dynamic load | 76500 N |
| Static load | 560000 N |
| Fatigue load limit Pu | 65500 N |
| Speed in grease | 850 rpm |
| Speed in oil | 1200 rpm |
| Weight (assembly) | 105 g |
| d1 | 135mm |
| D | 135mm |
| D1 | 102mm |
| B | 7mm |
