SKU: AXK1107-NTN

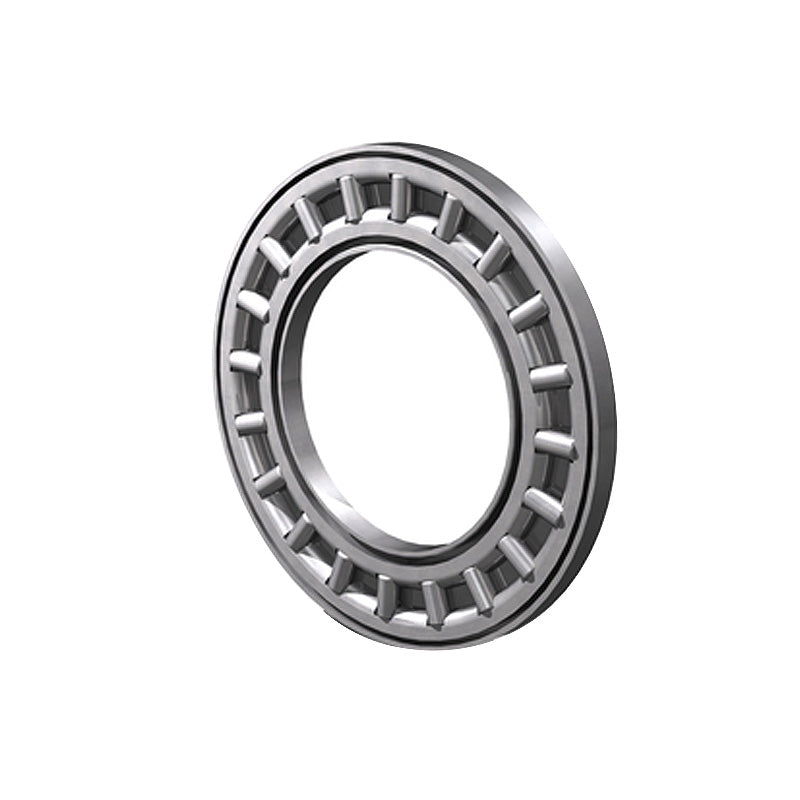

NTN AXK1107 Needle Roller Cage Only 35x52x2mm - Allow 2-3 Days
NTN AXK1107 Needle Roller Cage Only 35x52x2mm - Allow 2-3 Days
Regular price
$6.46
ex VAT
Regular price
Sale price
$6.46
ex VAT
Low stock
Price Break
3+
$4.33
4+
$4.08
9+
$4.03
19+
$3.99
49+
$3.94
99+
$3.89
499+
$3.65
999+
$3.60
1999+
$3.55
2999+
$3.50
4999+
$3.40
Quantity
Couldn't load pickup availability
Description
Description
|
NTN Needle Roller Thrust Bearing Cages: These cages are engineered for precision, durability, and smooth operation under demanding conditions. Designed by one of the world’s leading bearing manufacturers, these thrust cages provide exceptional rigidity and load-carrying capability while keeping friction to a minimum.
Perfect for applications where space is limited but performance cannot be compromised, NTN thrust cages deliver reliable axial support in high-speed, high-load environments. Their optimised cage design ensures accurate needle roller guidance, reduced heat generation, and long service life. Benefits: High axial load capacity, low friction, compact and lightweight design |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 52mm
- Width:
- 2mm
Technical
Technical
| Dc1 - Inside diameter | 35mm |
|---|---|
| Dc - Outside diameter | 52mm |
| Dw - Roller Width | 2mm |
| AS washer reference | AS1107 |
| WS inner ring reference | WS81107 |
| GS outer ring reference | GS81107 |
| Ea - Rollers reference outer diameter | 49.4mm |
| Eb - Rollers reference inner diameter | 39.5mm |
| Ca - Dynamic axial load rating | 17.8 kN |
| C0a - Static axial load rating | 81.5 kN |
| Cua - Limit axial load rating | 9.9 kN |
| Grease lubrication limit speed | 1400 tr/min |
| Oil lubrication limit speed | 5500 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| tmax - Maximum operating temperature | +120 Deg C |
