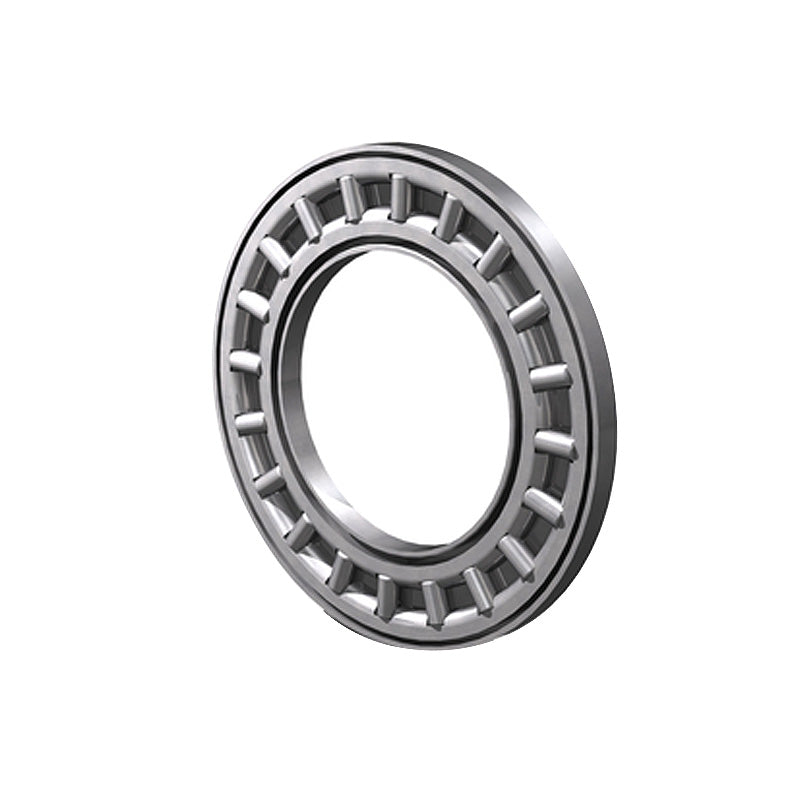

• NTN AXK1110 Needle Roller Cage Only 50x70x3mm - Allow 2-3 Days
  • NTN
1 2

SKU: AXK1110-NTN

NTN AXK1110 Needle Roller Cage Only 50x70x3mm - Allow 2-3 Days

NTN AXK1110 Needle Roller Cage Only 50x70x3mm - Allow 2-3 Days
$7.96 ex VAT
$7.96 ex VAT
Sale Sold out

Low stock

Price Break
3+ $5.33
4+ $5.03
9+ $4.97
19+ $4.91
49+ $4.85
99+ $4.79
499+ $4.49
999+ $4.43
1999+ $4.37
2999+ $4.31
4999+ $4.19

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
NTN Needle Roller Thrust Bearing Cages: These cages are engineered for precision, durability, and smooth operation under demanding conditions. Designed by one of the world’s leading bearing manufacturers, these thrust cages provide exceptional rigidity and load-carrying capability while keeping friction to a minimum. Perfect for applications where space is limited but performance cannot be compromised, NTN thrust cages deliver reliable axial support in high-speed, high-load environments. Their optimised cage design ensures accurate needle roller guidance, reduced heat generation, and long service life.
Benefits: High axial load capacity, low friction, compact and lightweight design
Brand / Quality:
NTN - High Quality
Inside Diameter:
50mm
Outside Diameter:
70mm
Width:
3mm
Technical
Dc1 - Inside diameter 50mm
Dc - Outside diameter 70mm
Dw - Roller Width 3mm
AS washer reference AS1110
WS inner ring reference WS81110
GS outer ring reference GS81110
Ea - Rollers reference outer diameter 67.4mm
Eb - Rollers reference inner diameter 55.5mm
Ca - Dynamic axial load rating 31.5 kN
C0a - Static axial load rating 143 kN
Cua - Limit axial load rating 17.4 kN
Grease lubrication limit speed 1000 tr/min
Oil lubrication limit speed 3900 tr/min
Tmin - Minimum operating temperature -20 Deg C
tmax - Maximum operating temperature +120 Deg C
