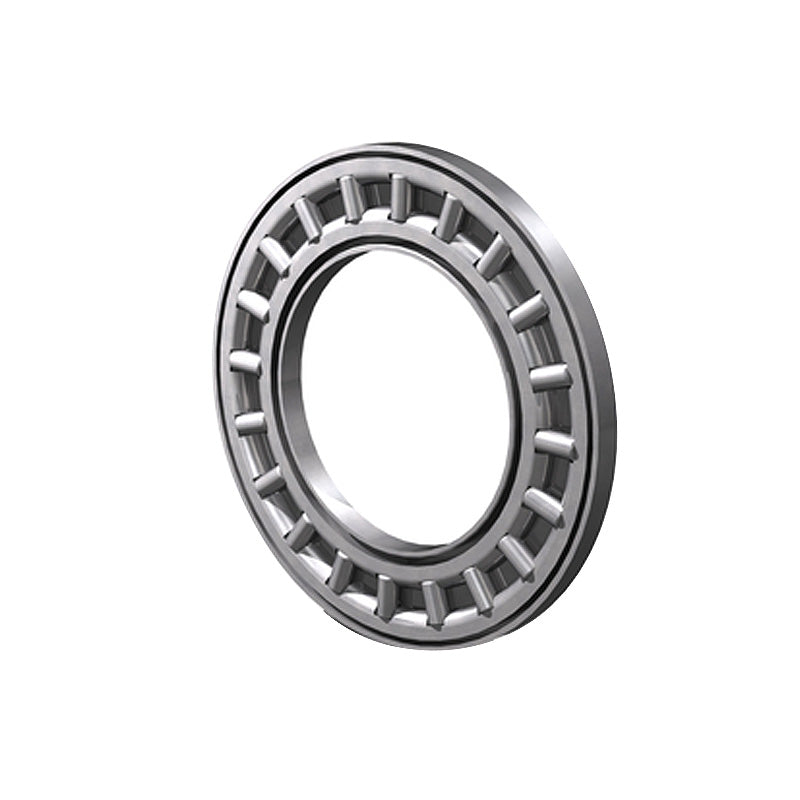

• NTN AXK1111 Needle Roller Cage Only 55x78x3mm - Allow 2-3 Days
  • NTN
1 2

SKU: AXK1111-NTN

NTN AXK1111 Needle Roller Cage Only 55x78x3mm - Allow 2-3 Days

NTN AXK1111 Needle Roller Cage Only 55x78x3mm - Allow 2-3 Days
$8.54 ex VAT
$8.54 ex VAT
Sale Sold out

Low stock

Price Break
3+ $5.72
4+ $5.40
9+ $5.34
19+ $5.27
49+ $5.21
99+ $5.14
499+ $4.82
999+ $4.76
1999+ $4.69
2999+ $4.63
4999+ $4.50

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
55mm
Outside Diameter:
78mm
Width:
3mm
Technical
Dc1 - Inside diameter 55mm
Dc - Outside diameter 78mm
Dw - Roller Width 3mm
AS washer reference AS1111
WS inner ring reference WS81111
GS outer ring reference GS81111
Ea - Rollers reference outer diameter 74.9mm
Eb - Rollers reference inner diameter 61mm
Ca - Dynamic axial load rating 38 kN
C0a - Static axial load rating 186 kN
Cua - Limit axial load rating 22.7 kN
Grease lubrication limit speed 900 tr/min
Oil lubrication limit speed 3500 tr/min
Tmin - Minimum operating temperature -20 Deg C
tmax - Maximum operating temperature +120 Deg C
