• NTN AXK1112 Needle Roller Cage Only 60x85x3mm - Allow 2-3 Days
  • NTN
1 2

SKU: AXK1112-NTN

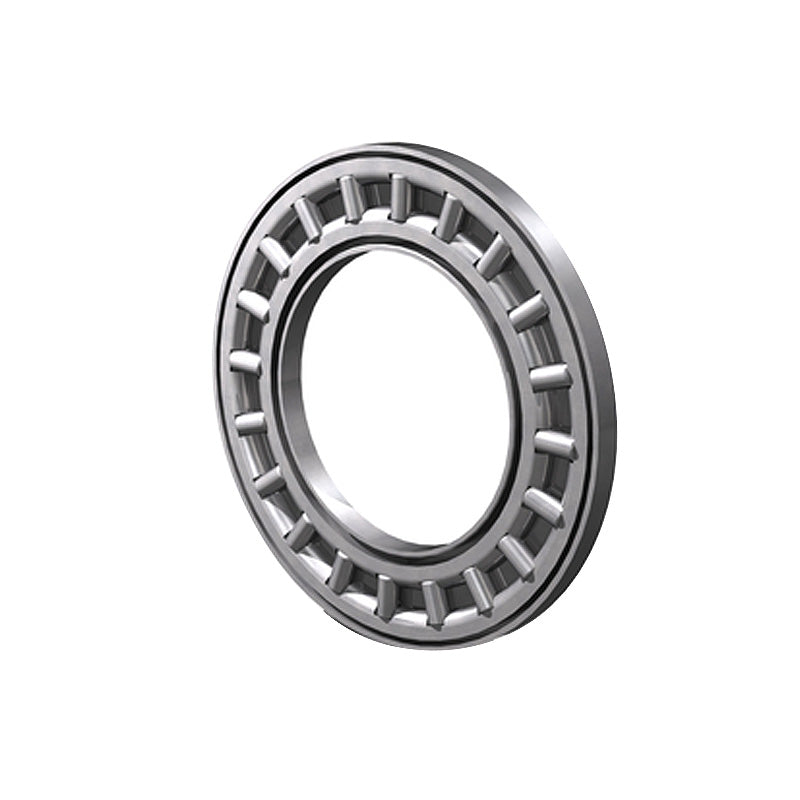

NTN AXK1112 Needle Roller Cage Only 60x85x3mm - Allow 2-3 Days

NTN AXK1112 Needle Roller Cage Only 60x85x3mm - Allow 2-3 Days
$9.71 ex VAT
$9.71 ex VAT
Sale Sold out

In stock

Price Break
3+ $6.51
4+ $6.14
9+ $6.07
19+ $5.99
49+ $5.92
99+ $5.85
499+ $5.48
999+ $5.41
1999+ $5.34
2999+ $5.26
4999+ $5.12

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
60mm
Outside Diameter:
85mm
Width:
3mm
Technical
Dc1 - Inside diameter 60mm
Dc - Outside diameter 85mm
Dw - Roller Width 3mm
AS washer reference AS1112
WS inner ring reference WS81112
GS outer ring reference GS81112
Ea - Rollers reference outer diameter 81.9mm
Eb - Rollers reference inner diameter 66mm
Ca - Dynamic axial load rating 44.5 kN
C0a - Static axial load rating 234 kN
Cua - Limit axial load rating 28.6 kN
Grease lubrication limit speed 800 tr/min
Oil lubrication limit speed 3200 tr/min
Tmin - Minimum operating temperature -20 Deg C
tmax - Maximum operating temperature +120 Deg C
