• NTN AXK1113 Needle Roller Cage Only 65x90x3mm - Allow 2-3 Days
  • NTN
1 2

SKU: AXK1113-NTN

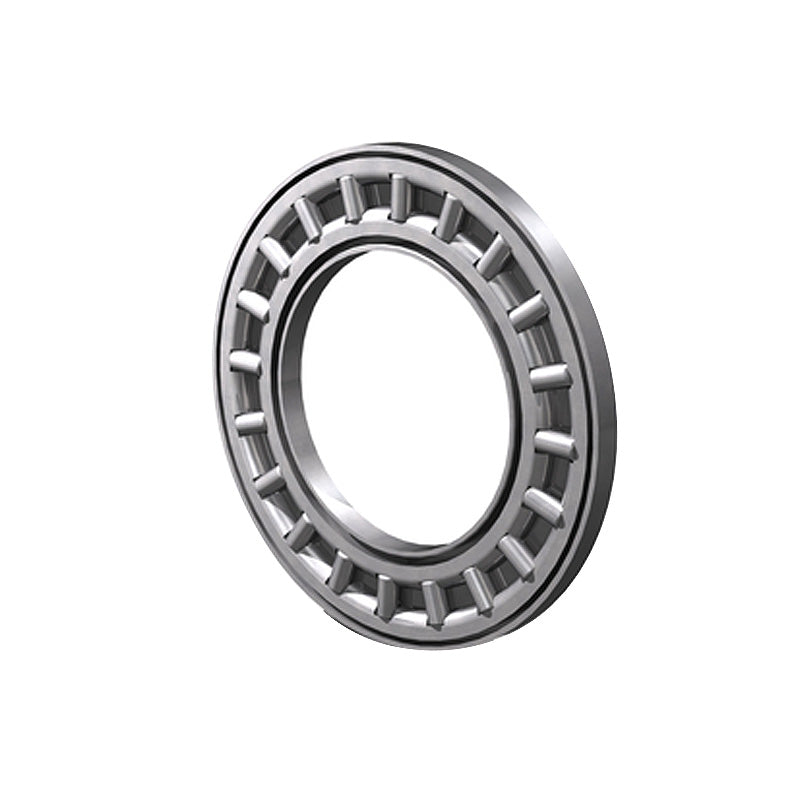

NTN AXK1113 Needle Roller Cage Only 65x90x3mm - Allow 2-3 Days

NTN AXK1113 Needle Roller Cage Only 65x90x3mm - Allow 2-3 Days
$11.52 ex VAT
$11.52 ex VAT
Sale Sold out

Low stock

Price Break
3+ $7.72
4+ $7.28
9+ $7.20
19+ $7.11
49+ $7.02
99+ $6.94
499+ $6.50
999+ $6.42
1999+ $6.33
2999+ $6.24
4999+ $6.07

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
65mm
Outside Diameter:
90mm
Width:
3mm
Technical
Dc1 - Inside diameter 65mm
Dc - Outside diameter 90mm
Dw - Roller Width 3mm
AS washer reference AS1113
WS inner ring reference WS81113
GS outer ring reference GS81113
Ea - Rollers reference outer diameter 86.9mm
Eb - Rollers reference inner diameter 71mm
Ca - Dynamic axial load rating 46.5 kN
C0a - Static axial load rating 254 kN
Cua - Limit axial load rating 31 kN
Grease lubrication limit speed 750 tr/min
Oil lubrication limit speed 3000 tr/min
Tmin - Minimum operating temperature -20 Deg C
tmax - Maximum operating temperature +120 Deg C
