SKU: AXK1528-EU-AS1528-EU

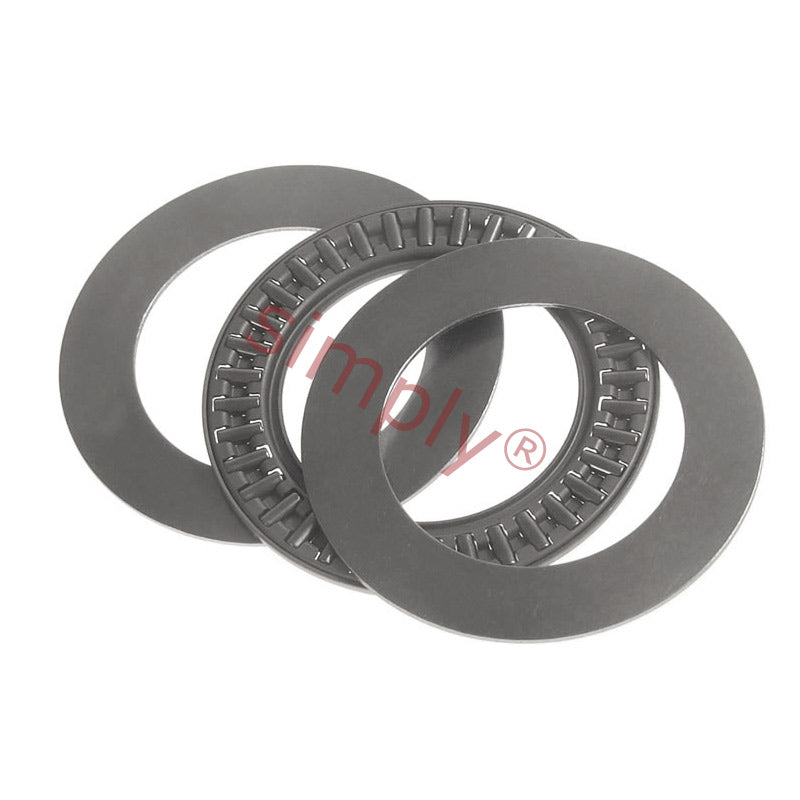

AXK1528/AS1528 Budget Needle Roller Cage with 2 AS Washers 15x28x4mm
AXK1528/AS1528 Budget Needle Roller Cage with 2 AS Washers 15x28x4mm
Regular price
$4.07
ex VAT
Regular price
Sale price
$4.07
ex VAT
In stock
Price Break
10+
$2.72
19+
$2.57
29+
$2.54
39+
$2.51
49+
$2.48
74+
$2.45
99+
$2.30
199+
$2.26
249+
$2.23
499+
$2.20
999+
$2.14
Quantity
Couldn't load pickup availability
Description
Description
|
Budget AXK Series Needle Roller Thrust Bearings Complete: Needle roller and cage thrust assemblies complete with 2 AS series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 28mm
- Width:
- 4mm
Technical
Technical
| d | 15mm |
|---|---|
| D | 28mm |
| Dw | 4mm |
| Ea | 17mm |
| Eb | 27mm |
| Dynamic load C | 10400 N |
| Static load Co | 37500 N |
| Fatigue load limit Pu | 4150 N |
| Speed in grease | 3200 rpm |
| Speed in oil | 4300 rpm |
| Weight (Assembly) | 4 g |
| d1 | 28mm |
| D | 28mm |
| D1 | 16mm |
| B | 2.75mm |
| r1r2 min | 0.3mm |
| Weight LS GS WS | 9 g |
| Weight AS | 3 g |
| Raceway washer | LS1528 |
| Thrust washer | AS1528 |
| Shaft washer | WS81102 |
| Housing washer | GS81102 |
