SKU: AXK160200-EU-AS160200-EU

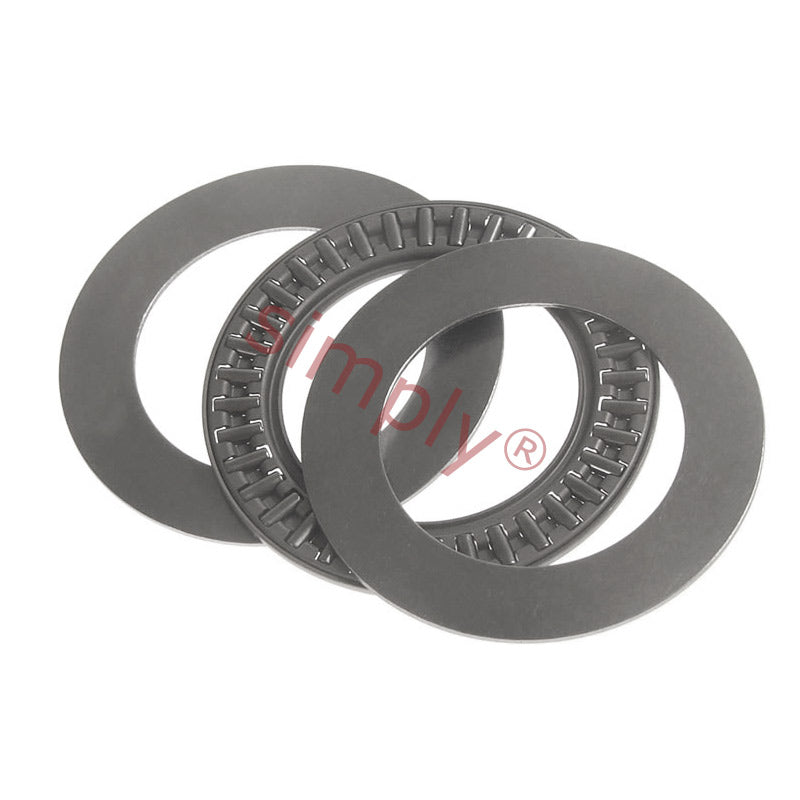

AXK160200/AS160200 Budget Needle Roller Cage with 2 AS Washers 160x200x7mm

Name: AXK160200/AS160200 Budget Needle Roller Cage with 2 AS Washers 160x200x7mm
Brand: Gen
SKU: AXK160200-EU-AS160200-EU
Price: 52.19 USD
Availability: InStock

$52.19 ex VAT

Sale Sold out

In stock

Price Break

10+ $34.96

19+ $33.00

29+ $32.61

39+ $32.21

49+ $31.82

74+ $31.43

99+ $29.46

199+ $29.07

249+ $28.68

499+ $28.28

999+ $27.50

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 160mm
Outside Diameter:: 200mm
Width:: 7mm

Technical

d	160mm
D	200mm
Dw	7mm
Ea	166mm
Eb	197mm
Dynamic load C	125000 N
Static load Co	1000000 N
Fatigue load limit Pu	106000 N
Speed in grease	630 rpm
Speed in oil	850 rpm
Weight (Assembly)	245 g
d1	198mm
D	200mm
D1	162mm
B	9.5mm
r1r2 min	1mm
Weight LS GS WS	840 g
Weight AS	89 g
Raceway washer	LS160200
Thrust washer	AS160200
Shaft washer	WS81132
Housing washer	GS81132
