SKU: AXK1831

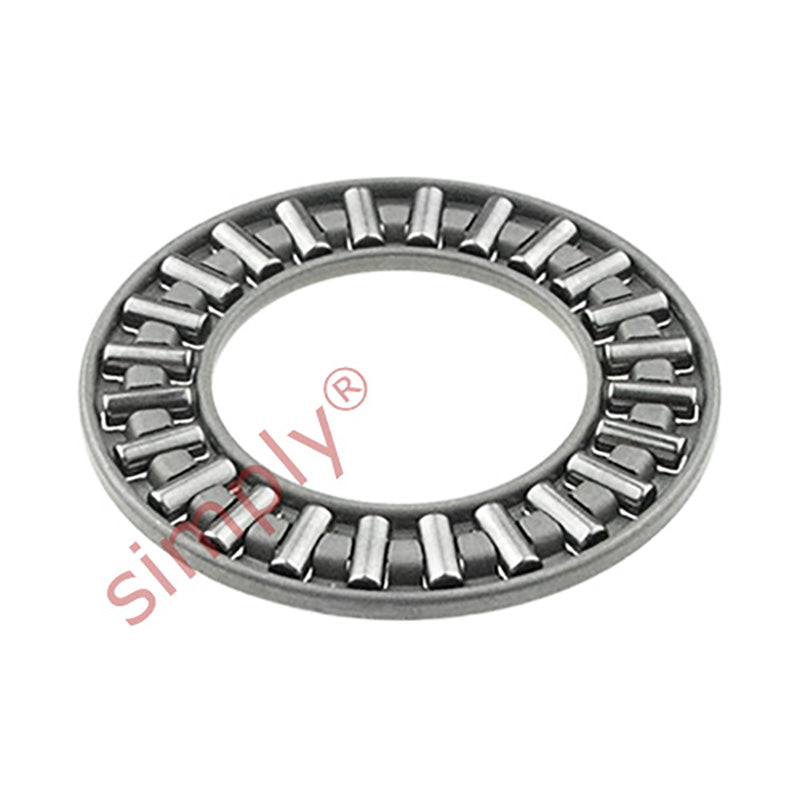

AXK1831 Major Branded Needle Roller Cage 18x31x2mm
AXK1831 Major Branded Needle Roller Cage 18x31x2mm
Regular price
$5.66
ex VAT
Regular price
Sale price
$5.66
ex VAT
In stock
Price Break
10+
$3.79
19+
$3.58
29+
$3.54
39+
$3.50
49+
$3.45
74+
$3.41
99+
$3.20
199+
$3.15
249+
$3.11
499+
$3.07
999+
$2.98
Quantity
Couldn't load pickup availability
Description
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 18mm
- Outside Diameter:
- 31mm
- Width:
- 2mm
Technical
Technical
| d | 18mm |
|---|---|
| D | 31mm |
| Dw | 2mm |
| Dynamic load | 9550 N |
| Static load | 34400N |
| Raceway Washer | LS1831 |
| Thrust Washer | AS1831 |
