SKU: AXK3047-MB
AXK3047 Major Branded Needle Roller Cage 30x47x2mm
AXK3047 Major Branded Needle Roller Cage 30x47x2mm
Regular price
$4.49
ex VAT
Regular price
Sale price
$4.49
ex VAT
In stock
Price Break
10+
$3.01
19+
$2.84
29+
$2.81
39+
$2.77
49+
$2.74
74+
$2.71
99+
$2.54
199+
$2.50
249+
$2.47
499+
$2.43
999+
$2.37
Quantity
Couldn't load pickup availability
Description
Description
|

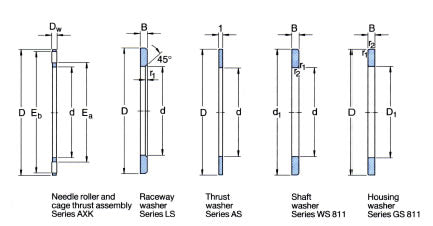

AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 47mm
- Width:
- 2mm
Technical
Technical
| d | 30mm |
|---|---|
| D | 47mm |
| Dw | 2mm |
| Ea | 34mm |
| Eb | 46mm |
| Dynamic load | 15000 N |
| Static load | 72000 N |
| Fatigue load limit Pu | 8000 N |
| Speed in grease | 2000 rpm |
| Speed in oil | 3000 rpm |
| Weight (assembly) | 8 g |
| d1 | 47mm |
| D | 47mm |
| D1 | 32mm |
| B | 3mm |
