SKU: AXK4060-EU-AS4060-EU

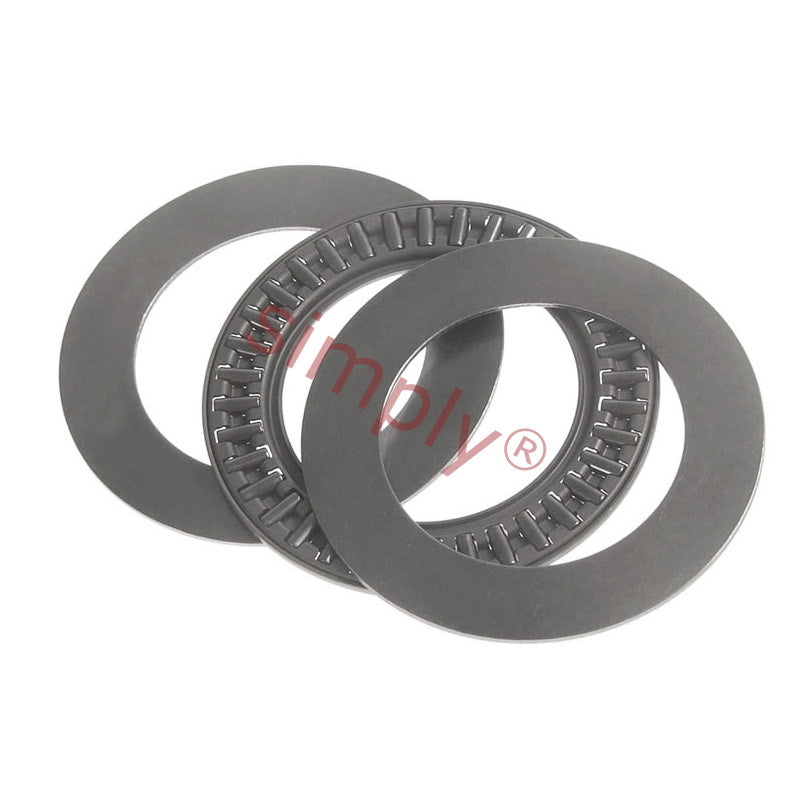

AXK4060/AS4060 Budget Needle Roller Cage with 2 AS Washers 40x60x5mm

Name: AXK4060/AS4060 Budget Needle Roller Cage with 2 AS Washers 40x60x5mm
Brand: Gen
SKU: AXK4060-EU-AS4060-EU
Price: 7.99 USD
Availability: InStock

$7.99 ex VAT

Sale Sold out

In stock

Price Break

10+ $5.35

19+ $5.05

29+ $4.99

39+ $4.93

49+ $4.87

74+ $4.81

99+ $4.51

199+ $4.45

249+ $4.39

499+ $4.33

999+ $4.21

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 40mm
Outside Diameter:: 60mm
Width:: 5mm

Technical

d	40mm
D	60mm
Dw	5mm
Ea	45mm
Eb	58mm
Dynamic load C	25000 N
Static load Co	114000 N
Fatigue load limit Pu	13700 N
Speed in grease	1700 rpm
Speed in oil	2400 rpm
Weight (Assembly)	16 g
d1	60mm
D	60mm
D1	42mm
B	3.5mm
r1r2 min	0.6mm
Weight LS GS WS	40 g
Weight AS	12 g
Raceway washer	LS4060
Thrust washer	AS4060
Shaft washer	WS81108
Housing washer	GS81108
