SKU: AXK6085-EU-AS6085-EU

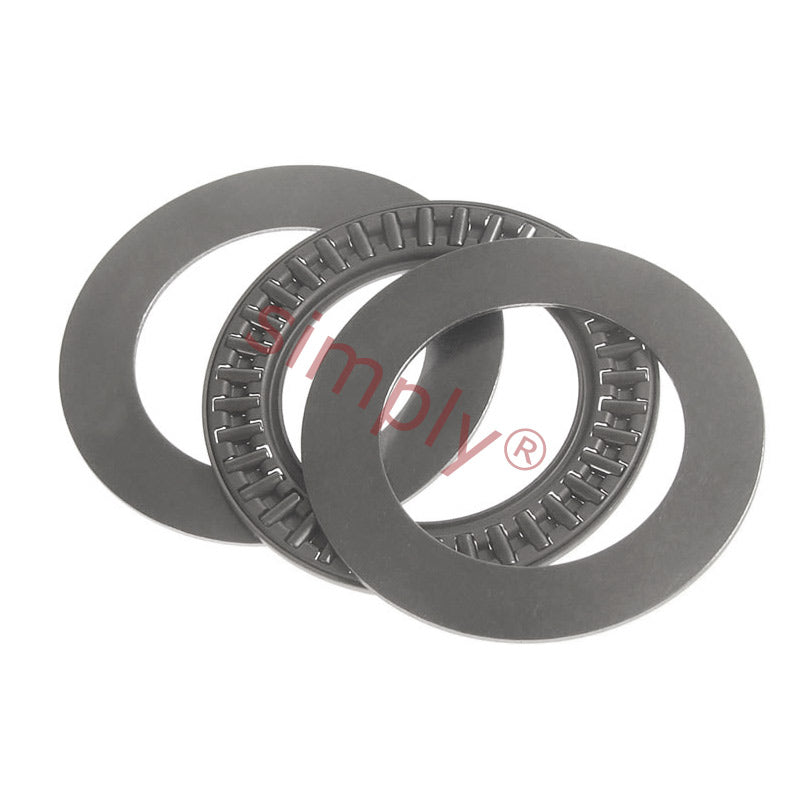

AXK6085/AS6085 Budget Needle Roller Cage with 2 AS Washers 60x85x5mm

Name: AXK6085/AS6085 Budget Needle Roller Cage with 2 AS Washers 60x85x5mm
Brand: Gen
SKU: AXK6085-EU-AS6085-EU
Price: 14.36 USD
Availability: InStock

$14.36 ex VAT

Sale Sold out

In stock

Price Break

10+ $9.62

19+ $9.08

29+ $8.97

39+ $8.86

49+ $8.76

74+ $8.65

99+ $8.11

199+ $8.00

249+ $7.89

499+ $7.78

999+ $7.57

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 60mm
Outside Diameter:: 85mm
Width:: 5mm

Technical

d	60mm
D	85mm
Dw	5mm
Ea	65mm
Eb	83mm
Dynamic load C	37500 N
Static load Co	232000 N
Fatigue load limit Pu	28500 N
Speed in grease	1300 rpm
Speed in oil	1800 rpm
Weight (Assembly)	33 g
d1	85mm
D	85mm
D1	62mm
B	4.75mm
r1r2 min	1mm
Weight LS GS WS	97 g
Weight AS	22 g
Raceway washer	LS6085
Thrust washer	AS6085
Shaft washer	WS81112
Housing washer	GS81112
