SKU: AXK6590-EU-AS6590-EU

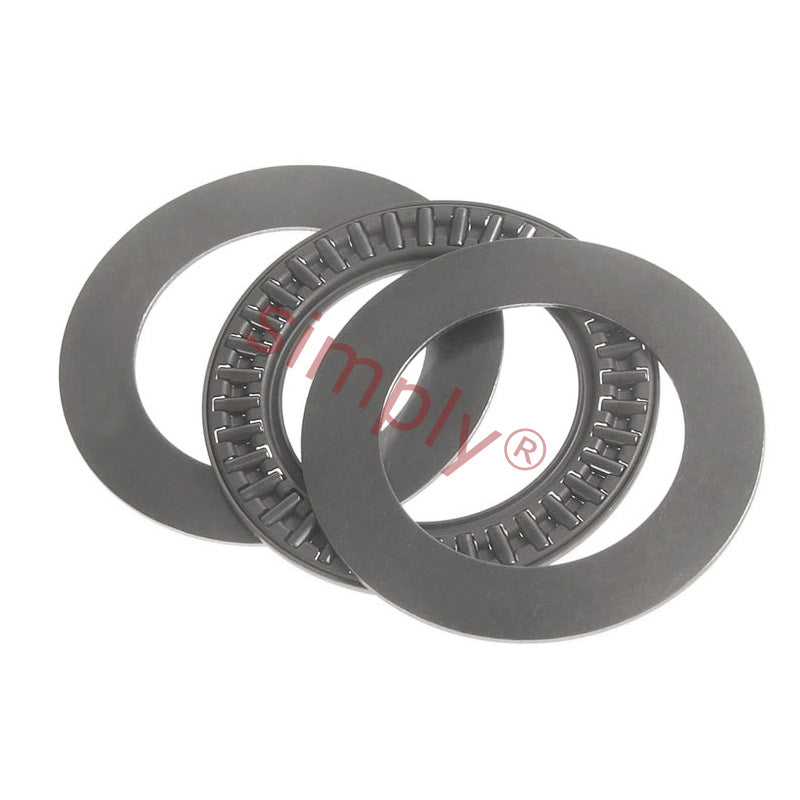

AXK6590/AS6590 Budget Needle Roller Cage with 2 AS Washers 65x90x5mm

Name: AXK6590/AS6590 Budget Needle Roller Cage with 2 AS Washers 65x90x5mm
Brand: Gen
SKU: AXK6590-EU-AS6590-EU
Price: 17.07 USD
Availability: InStock

$17.07 ex VAT

Sale Sold out

In stock

Price Break

10+ $11.44

19+ $10.80

29+ $10.67

39+ $10.54

49+ $10.41

74+ $10.28

99+ $9.64

199+ $9.51

249+ $9.38

499+ $9.25

999+ $9.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 65mm
Outside Diameter:: 90mm
Width:: 5mm

Technical

d	65mm
D	90mm
Dw	5mm
Ea	70mm
Eb	88mm
Dynamic load C	39000 N
Static load Co	255000 N
Fatigue load limit Pu	31000 N
Speed in grease	1200 rpm
Speed in oil	1700 rpm
Weight (Assembly)	35 g
d1	90mm
D	90mm
D1	67mm
B	5.25mm
r1r2 min	1mm
Weight LS GS WS	115 g
Weight AS	24 g
Raceway washer	LS6590
Thrust washer	AS6590
Shaft washer	WS81113
Housing washer	GS81113
