• AXK7095/AS7095 Budget Needle Roller Cage with 2 AS Washers 70x95x6mm
1 1

SKU: AXK7095-EU-AS7095-EU

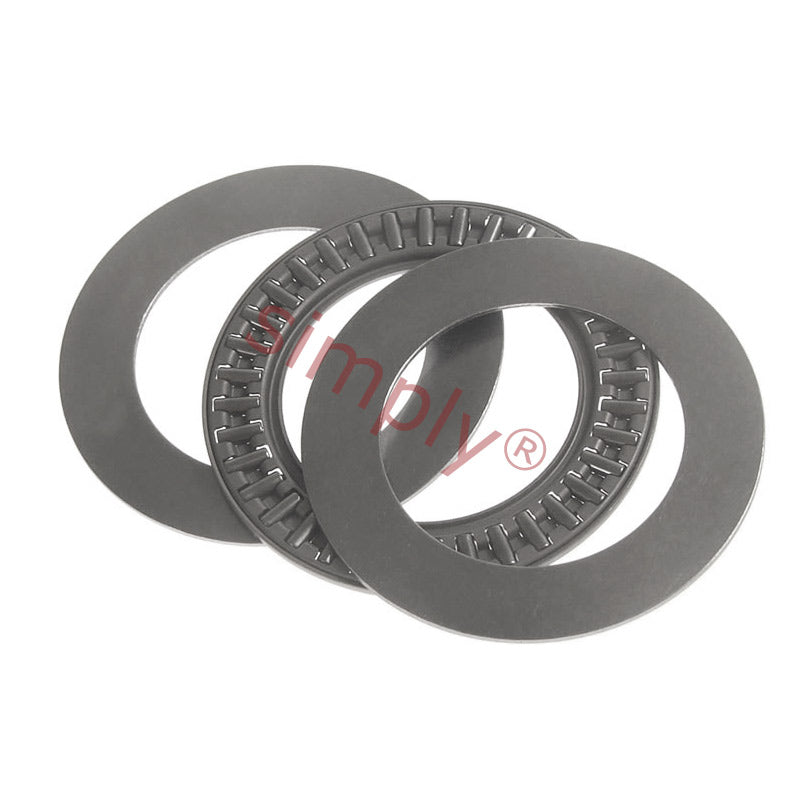

AXK7095/AS7095 Budget Needle Roller Cage with 2 AS Washers 70x95x6mm

AXK7095/AS7095 Budget Needle Roller Cage with 2 AS Washers 70x95x6mm
$23.01 ex VAT
$23.01 ex VAT
Sale Sold out

In stock

Price Break
10+ $15.42
19+ $14.55
29+ $14.38
39+ $14.21
49+ $14.03
74+ $13.86
99+ $12.99
199+ $12.82
249+ $12.65
499+ $12.47
999+ $12.13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Budget AXK Series Needle Roller Thrust Bearings Complete: Needle roller and cage thrust assemblies complete with 2 AS series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence.
Benefits: Cost effective thrust solution, wide range, low profile, high load bearing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
70mm
Outside Diameter:
95mm
Width:
6mm
Technical
d 70mm
D 95mm
Dw 6mm
Ea 74mm
Eb 93mm
Dynamic load C 49000 N
Static load Co 255000 N
Fatigue load limit Pu 30500 N
Speed in grease 1200 rpm
Speed in oil 1700 rpm
Weight (Assembly) 60 g
d1 95mm
D 95mm
D1 72mm
B 5.25mm
r1r2 min 1mm
Weight LS GS WS 125 g
Weight AS 25 g
Raceway washer LS7095
Thrust washer AS7095
Shaft washer WS81114
Housing washer GS81114
