• AXK7095 Major Branded Needle Roller Cage 70x95x4mm
1 1

SKU: AXK7095-MB

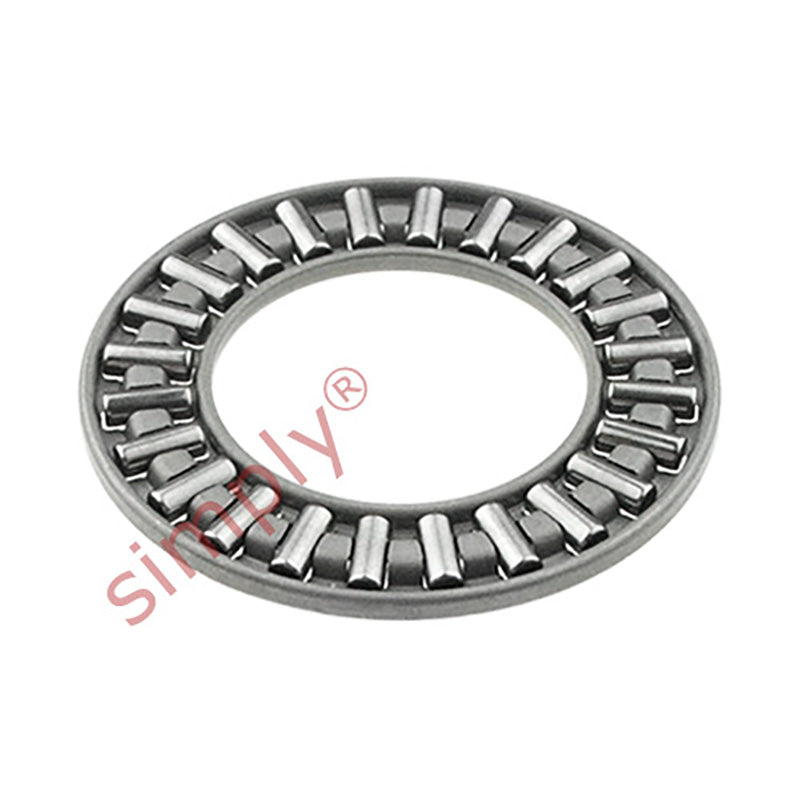

AXK7095 Major Branded Needle Roller Cage 70x95x4mm

AXK7095 Major Branded Needle Roller Cage 70x95x4mm
$27.74 ex VAT
$27.74 ex VAT
Sale Sold out

In stock

Price Break
10+ $18.58
19+ $17.54
29+ $17.33
39+ $17.12
49+ $16.91
74+ $16.70
99+ $15.66
199+ $15.45
249+ $15.24
499+ $15.03
999+ $14.62

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence.
Benefits: Cost effective thrust solution, wide range, low profile, high load bearing
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
70mm
Outside Diameter:
95mm
Width:
4mm
Technical
d 70mm
D 95mm
Dw 4mm
Ea 74mm
Eb 93mm
Dynamic load 49000 N
Static load 255000 N
Fatigue load limit Pu 30500 N
Speed in grease 1200 rpm
Speed in oil 1700 rpm
Weight (assembly) 60 g
d1 95mm
D 95mm
D1 72mm
B 5.25mm
