SKU: AXK75100-EU-AS75100-EU

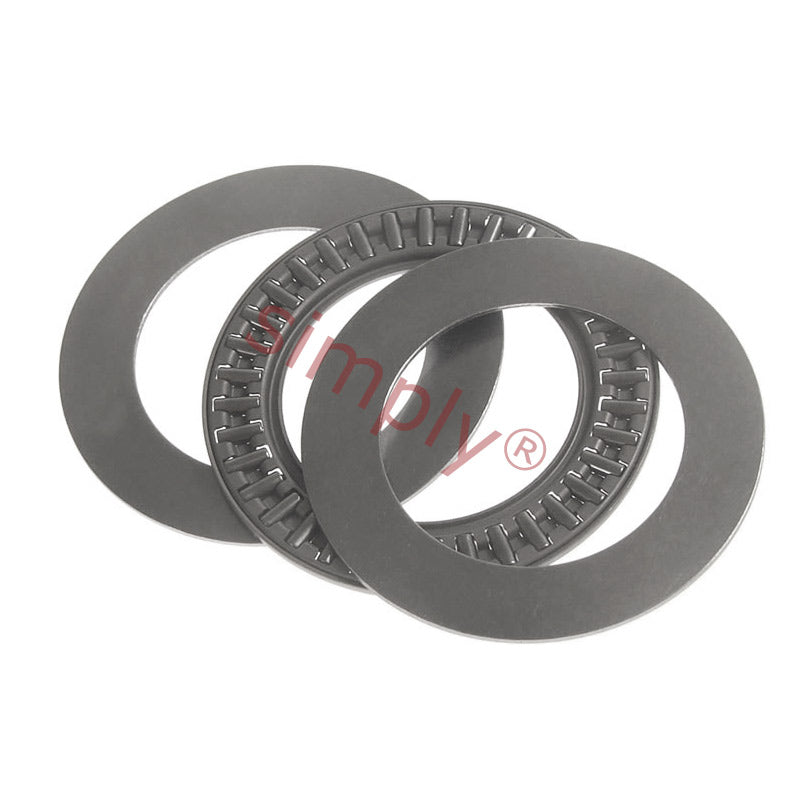

AXK75100/AS75100 Budget Needle Roller Cage with 2 AS Washers 75x100x6mm
AXK75100/AS75100 Budget Needle Roller Cage with 2 AS Washers 75x100x6mm
Regular price
$28.25
ex VAT
Regular price
Sale price
$28.25
ex VAT
In stock
Price Break
10+
$18.93
19+
$17.86
29+
$17.65
39+
$17.44
49+
$17.22
74+
$17.01
99+
$15.95
199+
$15.74
249+
$15.52
499+
$15.31
999+
$14.89
Quantity
Couldn't load pickup availability
Description
Description
|
Budget AXK Series Needle Roller Thrust Bearings Complete: Needle roller and cage thrust assemblies complete with 2 AS series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 100mm
- Width:
- 6mm
Technical
Technical
| d | 75mm |
|---|---|
| D | 100mm |
| Dw | 6mm |
| Ea | 79mm |
| Eb | 98mm |
| Dynamic load C | 50000 N |
| Static load Co | 265000 N |
| Fatigue load limit Pu | 32000 N |
| Speed in grease | 1100 rpm |
| Speed in oil | 1600 rpm |
| Weight (Assembly) | 61 g |
| d1 | 100mm |
| D | 100mm |
| D1 | 77mm |
| B | 5.75mm |
| r1r2 min | 1mm |
| Weight LS GS WS | 140 g |
| Weight AS | 27 g |
| Raceway washer | LS75100 |
| Thrust washer | AS75100 |
| Shaft washer | WS81115 |
| Housing washer | GS81115 |
