SKU: AXW10-EU

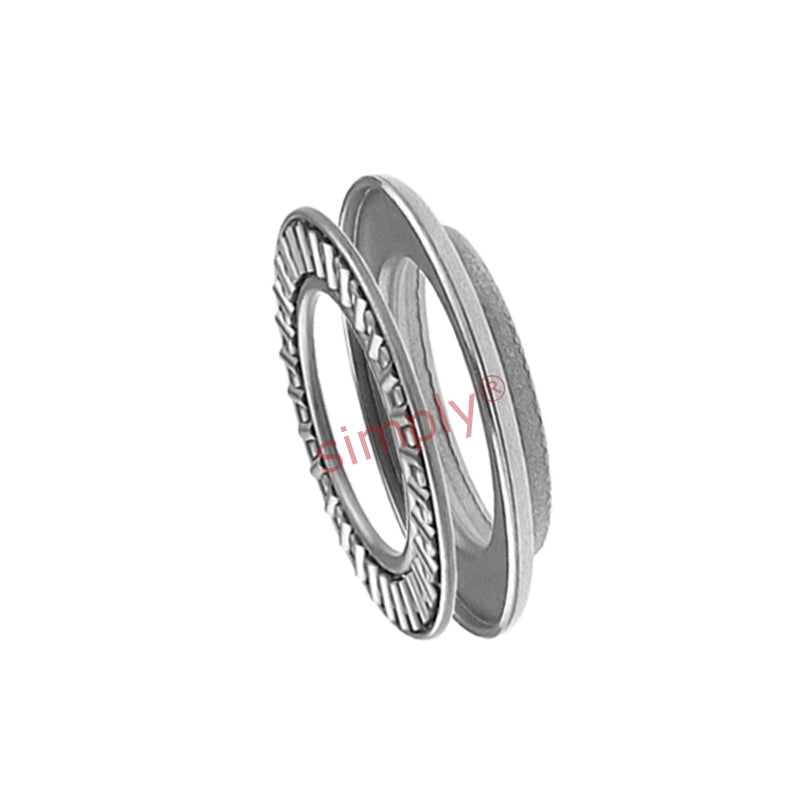

Quality Budget AXW10 Thrust Race with Centering Spigot 10x27x3.2mm
Quality Budget AXW10 Thrust Race with Centering Spigot 10x27x3.2mm
Regular price
$4.08
ex VAT
Regular price
Sale price
$4.08
ex VAT
In stock
Price Break
10+
$2.73
19+
$2.57
29+
$2.54
39+
$2.51
49+
$2.48
74+
$2.45
99+
$2.30
199+
$2.27
249+
$2.24
499+
$2.21
999+
$2.15
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
AXW Series Spigot Alignment Needle Thrust Bearings: Similar to the AXK needle thrust bearing this series has a centre spigot to enable it to be aligned in a bore of a housing, they can be combined with radial needle roller bearings to accommodate radial and axial loads simultaneously and are generally used in conjunction with the AS, LS and GS series washers. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 27mm
- Width:
- 3.2mm
Technical
Technical
| Inside diameter | 10mm |
|---|---|
| Outside diameter | 27mm |
| B | 3.2mm |
| B1 | 3mm |
| D1 | 14mm |
| Ea | 12mm |
| Eb | 23mm |
| Weight | 8.3 g |
| Dynamic load | 9200 N |
| Static load | 25500 N |
| Fatigue load limit | 2500 N |
| Limiting speed | 16900 rpm |
| Reference speed | 8300 rpm |
| Bearing washer to use | <a href="advanced_search_result.php?search_in_description=0&keywords=AS1024">Click Here AS1024 |
