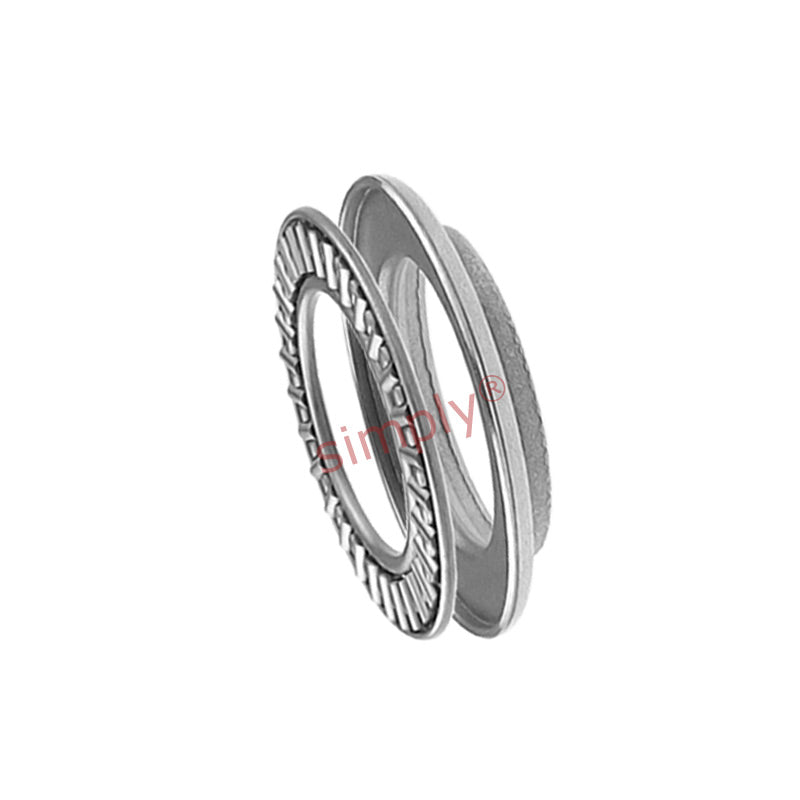

Quality Budget AXW12 Thrust Race with Centering Spigot 12x29x3.2mm
Quality Budget AXW12 Thrust Race with Centering Spigot 12x29x3.2mm
Regular price
$4.89
ex VAT
Regular price
Sale price
$4.89
ex VAT
In stock
Price Break
10+
$3.28
19+
$3.09
29+
$3.06
39+
$3.02
49+
$2.98
74+
$2.95
99+
$2.76
199+
$2.72
249+
$2.69
499+
$2.65
999+
$2.58
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
AXW Series Spigot Alignment Needle Thrust Bearings: Similar to the AXK needle thrust bearing this series has a centre spigot to enable it to be aligned in a bore of a housing, they can be combined with radial needle roller bearings to accommodate radial and axial loads simultaneously and are generally used in conjunction with the AS, LS and GS series washers. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 29mm
- Width:
- 3.2mm
Technical
Technical
| Inside diameter | 12mm |
|---|---|
| Outside diameter | 29mm |
| B | 3.2mm |
| B1 | 3mm |
| D1 | 16mm |
| Ea | 14mm |
| Eb | 25mm |
| Weight | 9.1 g |
| Dynamic load | 9900 N |
| Static load | 29000 N |
| Fatigue load limit | 2850 N |
| Limiting speed | 15200 rpm |
| Reference speed | 7300 rpm |
| Bearing washer to use | <a href="advanced_search_result.php?search_in_description=0&keywords=AS1226">Click Here AS1226 |
