SKU: AXW12-MB

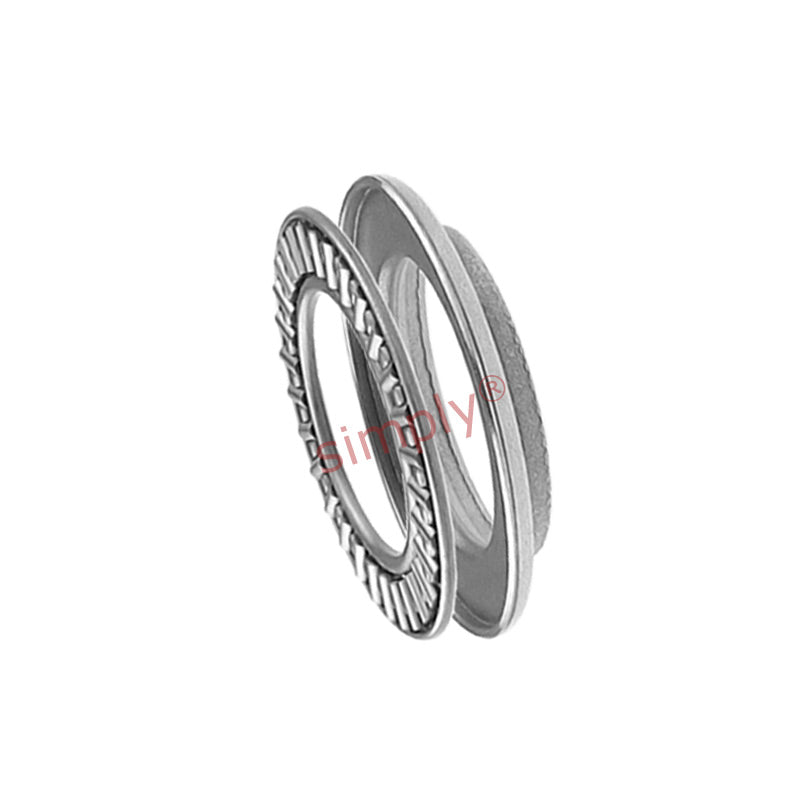

INA / SKF AXW12 Thrust Race with Centering Spigot 12x29x3.2mm
INA / SKF AXW12 Thrust Race with Centering Spigot 12x29x3.2mm
Regular price
$6.52
ex VAT
Regular price
Sale price
$6.52
ex VAT
In stock
Price Break
10+
$4.37
19+
$4.12
29+
$4.07
39+
$4.03
49+
$3.98
74+
$3.93
99+
$3.68
199+
$3.63
249+
$3.58
499+
$3.53
999+
$3.44
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
AXW Series Spigot Alignment Needle Thrust Bearings: Similar to the AXK needle thrust bearing this series has a centre spigot to enable it to be aligned in a bore of a housing, they can be combined with radial needle roller bearings to accommodate radial and axial loads simultaneously and are generally used in conjunction with the AS, LS and GS series washers. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 29mm
- Width:
- 3.2mm
Technical
Technical
| Inside diameter | 12mm |
|---|---|
| Outside diameter | 29mm |
| B | 3.2mm |
| B1 | 3mm |
| D1 | 16mm |
| Ea | 14mm |
| Eb | 25mm |
| Weight | 9.1 g |
| Dynamic load | 9900 N |
| Static load | 29000 N |
| Fatigue load limit | 2850 N |
| Limiting speed | 15200 rpm |
| Reference speed | 7300 rpm |
| Bearing washer to use | <a href="advanced_search_result.php?search_in_description=0&keywords=AS1226">Click Here AS1226 |
