SKU: AXW17-EU

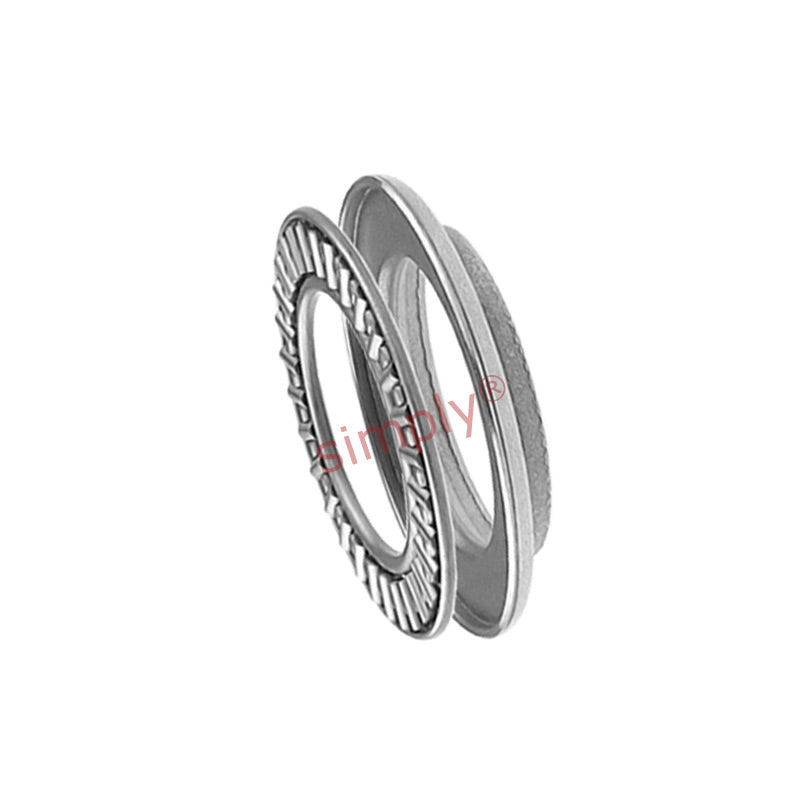

Quality Budget AXW17 Thrust Race with Centering Spigot 17x33x3.2mm
Quality Budget AXW17 Thrust Race with Centering Spigot 17x33x3.2mm
Regular price
$5.79
ex VAT
Regular price
Sale price
$5.79
ex VAT
In stock
Price Break
10+
$3.88
19+
$3.66
29+
$3.62
39+
$3.57
49+
$3.53
74+
$3.49
99+
$3.27
199+
$3.22
249+
$3.18
499+
$3.14
999+
$3.05
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
AXW Series Spigot Alignment Needle Thrust Bearings: Similar to the AXK needle thrust bearing this series has a centre spigot to enable it to be aligned in a bore of a housing, they can be combined with radial needle roller bearings to accommodate radial and axial loads simultaneously and are generally used in conjunction with the AS, LS and GS series washers. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 33mm
- Width:
- 3.2mm
Technical
Technical
| Inside diameter | 17mm |
|---|---|
| Outside diameter | 33mm |
| B | 3.2mm |
| B1 | 3.5mm |
| D1 | 23mm |
| Ea | 19mm |
| Eb | 29mm |
| Weight | 11 g |
| Dynamic load | 11900 N |
| Static load | 39500 N |
| Fatigue load limit | 3950 N |
| Limiting speed | 12100 rpm |
| Reference speed | 5300 rpm |
| Bearing washer to use | <a href="advanced_search_result.php?search_in_description=0&keywords=AS1730">Click Here AS1730 |
