SKU: AXW20-EU

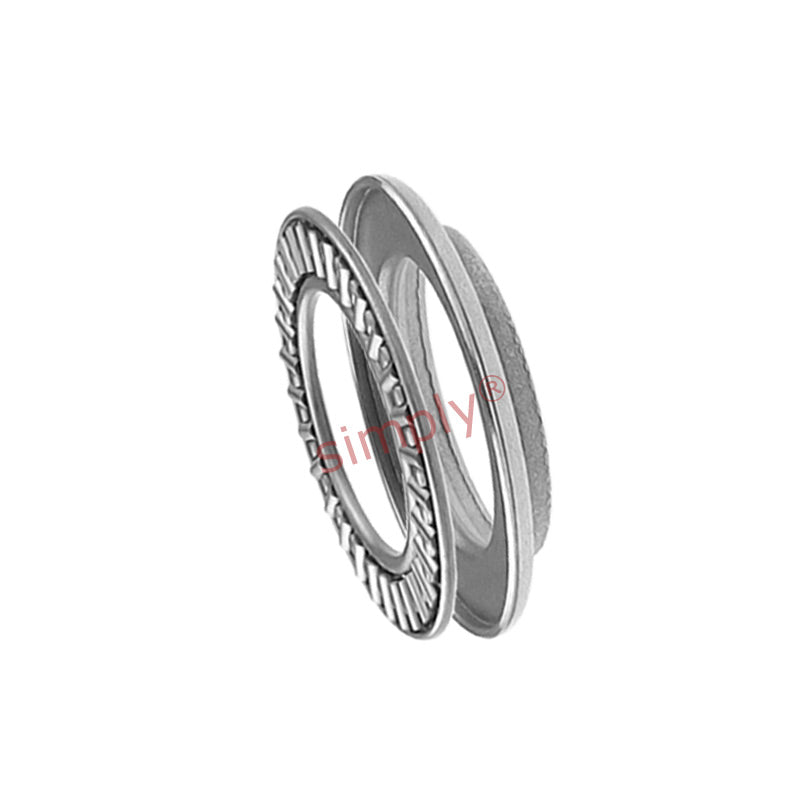

Quality Budget AXW20 Thrust Race with Centering Spigot 20x38x3.2mm
Quality Budget AXW20 Thrust Race with Centering Spigot 20x38x3.2mm
Regular price
$7.43
ex VAT
Regular price
Sale price
$7.43
ex VAT
In stock
Price Break
10+
$4.97
19+
$4.69
29+
$4.64
39+
$4.58
49+
$4.53
74+
$4.47
99+
$4.19
199+
$4.13
249+
$4.08
499+
$4.02
999+
$3.91
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
AXW Series Spigot Alignment Needle Thrust Bearings: Similar to the AXK needle thrust bearing this series has a centre spigot to enable it to be aligned in a bore of a housing, they can be combined with radial needle roller bearings to accommodate radial and axial loads simultaneously and are generally used in conjunction with the AS, LS and GS series washers. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 38mm
- Width:
- 3.2mm
Technical
Technical
| Inside diameter | 20mm |
|---|---|
| Outside diameter | 38mm |
| B | 3.2mm |
| B1 | 3.5mm |
| D1 | 26mm |
| Ea | 22mm |
| Eb | 34mm |
| Weight | 14 g |
| Dynamic load | 13100 N |
| Static load | 46500 N |
| Fatigue load limit | 4750 N |
| Limiting speed | 10500 rpm |
| Reference speed | 4900 rpm |
| Bearing washer to use | <a href="advanced_search_result.php?search_in_description=0&keywords=AS2035">Click Here AS2035 |
