SKU: AXW40-MB

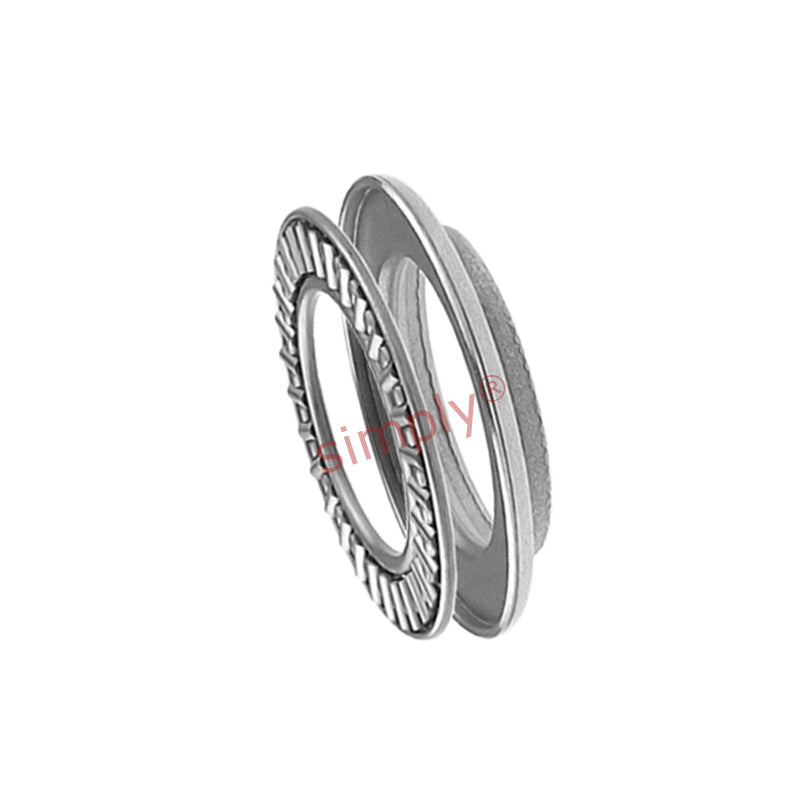

INA / SKF AXW40 Thrust Race with Centering Spigot 40x63x4.2mm
INA / SKF AXW40 Thrust Race with Centering Spigot 40x63x4.2mm
Regular price
$17.15
ex VAT
Regular price
Sale price
$17.15
ex VAT
In stock
Price Break
10+
$11.49
19+
$10.84
29+
$10.71
39+
$10.58
49+
$10.46
74+
$10.33
99+
$9.68
199+
$9.55
249+
$9.42
499+
$9.29
999+
$9.04
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
AXW Series Spigot Alignment Needle Thrust Bearings: Similar to the AXK needle thrust bearing this series has a centre spigot to enable it to be aligned in a bore of a housing, they can be combined with radial needle roller bearings to accommodate radial and axial loads simultaneously and are generally used in conjunction with the AS, LS and GS series washers. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 63mm
- Width:
- 4.2mm
Technical
Technical
| Inside diameter | 40mm |
|---|---|
| Outside diameter | 63mm |
| B | 4.2mm |
| B1 | 4mm |
| D1 | 47mm |
| Ea | 45mm |
| Eb | 58mm |
| Weight | 39 g |
| Dynamic load | 28000 N |
| Static load | 114000 N |
| Fatigue load limit | 11800 N |
| Limiting speed | 5600 rpm |
| Reference speed | 2700 rpm |
| Bearing washer to use | <a href="advanced_search_result.php?search_in_description=0&keywords=AS4060">Click Here AS4060 |
