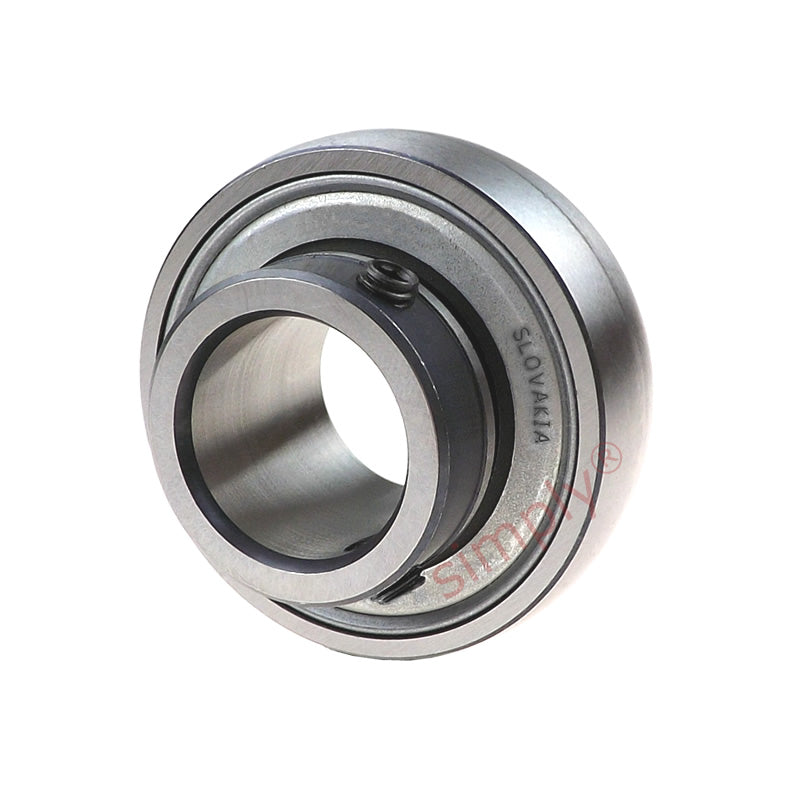

INA AY25XLNPP Metric Parallel Outer Bearing Insert with P Seals and Grub Screws 25x52x27mm

INA AY..NPP Series Inserts: Bearing insert with parallel outer, P seals and grub screws. In these radial insert ball bearings, the inner ring is located on the shaft by means of two grub screws offset by 120 degrees. This location method is suitable for bearing arrangements with a constant direction of rotation or, under low speed and load, for an alternating direction of rotation. The grub screws are self-retaining and have a fine pitch thread with cup point for secure location of the bearings. Operating temperature range: -20 deg C to +120 deg C.
Benefits: Compensation of misalignment.

Brand / Quality:

INA - High Quality

Inside Diameter:

25mm

Outside Diameter:

52mm

Width:

27mm
