SKU: B-1910

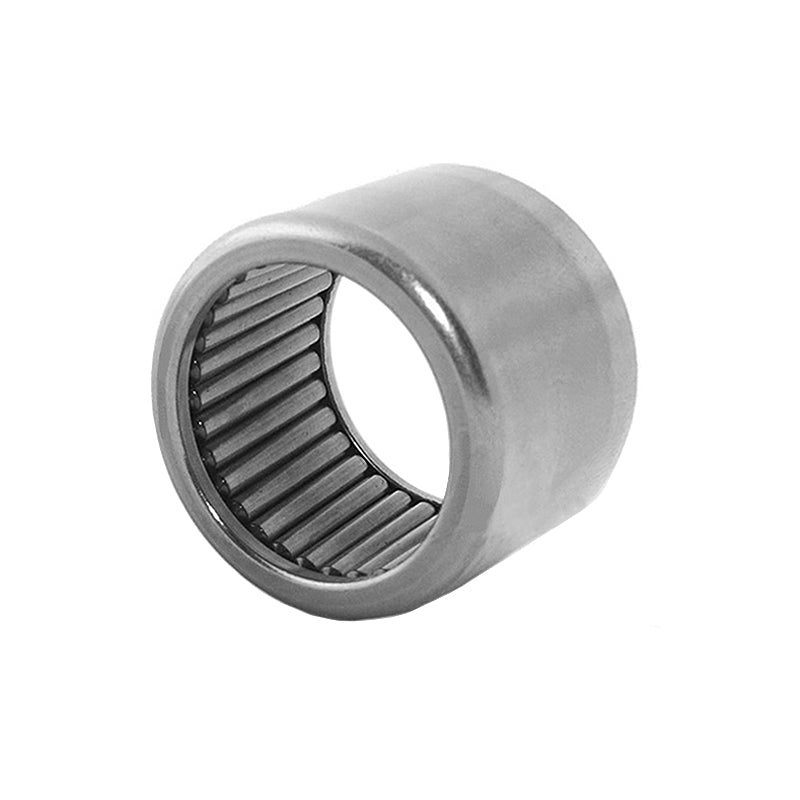

Major Brand B1910 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 1-3/16x1-1/2x5/8 inch
Major Brand B1910 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 1-3/16x1-1/2x5/8 inch
Out of stock
Description
Description
Full Complement Needle Roller Bearings: Of similar construction to the common HK and TA series needle roller bearings but having no cage and twice the number of rollers occupying the same space to permit greater load carrying capacity. Often referred to as crowded roller construction. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Outside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Width:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Inside Diameter | 30.16mm = 1.1875 inch |
|---|---|
| Outside Diameter | 38.1mm = 1.5 inch |
| Width | 15.88mm = 0.625 inch |
| Dynamic load C | 24.1 kN |
| Static load Co | 43.8 kN |
| S max | 30.163mm = 1.1875 inch |
| S min | 30.15mm = 1.187 inch |
| H max | 38.113mm = 1.5005 inch |
| H min | 38.087mm = 1.4995 inch |
