• Major Branded B24 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 1/8x1/4x1/4 inch
1 1

SKU: B-24

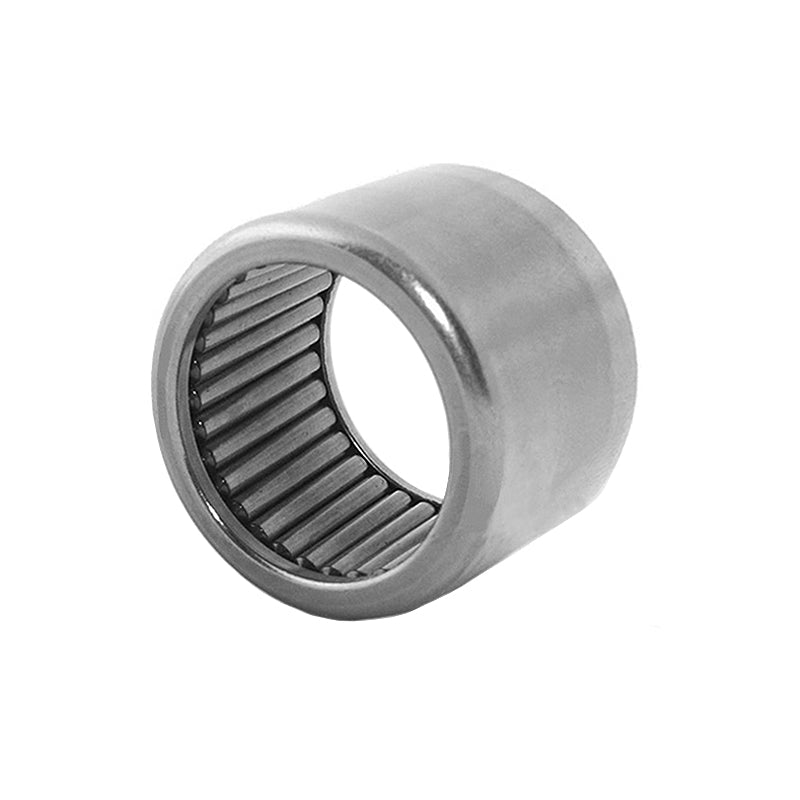

Major Branded B24 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 1/8x1/4x1/4 inch

Major Branded B24 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 1/8x1/4x1/4 inch
$21.60 ex VAT
$21.60 ex VAT
Sale Sold out

In stock

Price Break
5+ $14.47
9+ $13.66
19+ $13.49
29+ $13.33
49+ $13.17
74+ $13.01
99+ $12.19
199+ $12.03
249+ $11.87
499+ $11.71
999+ $11.38

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Full Complement Needle Roller Bearings: Of similar construction to the common HK and TA series needle roller bearings but having no cage and twice the number of rollers occupying the same space to permit greater load carrying capacity. Often referred to as crowded roller construction.
Benefits: Compact space saving design, High load capacity.
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
3.18mm = 0.125 (1/8) inch
Outside Diameter:
6.35mm = 0.25 (1/4) inch
Width:
6.35mm = 0.25 (1/4) inch
Technical
Inside Diameter 3.18mm = 0.125 inch
Outside Diameter 6.35mm = 0.25 inch
Width 6.35mm = 0.25 inch
Dynamic load C 1.73 kN
Static load Co 1.65 kN
S max 3.175mm = 0.125 inch
S min 3.167mm = 0.1247 inch
H max 6.363mm = 0.2505 inch
H min 6.35mm = 0.25 inch
