SKU: B-3010

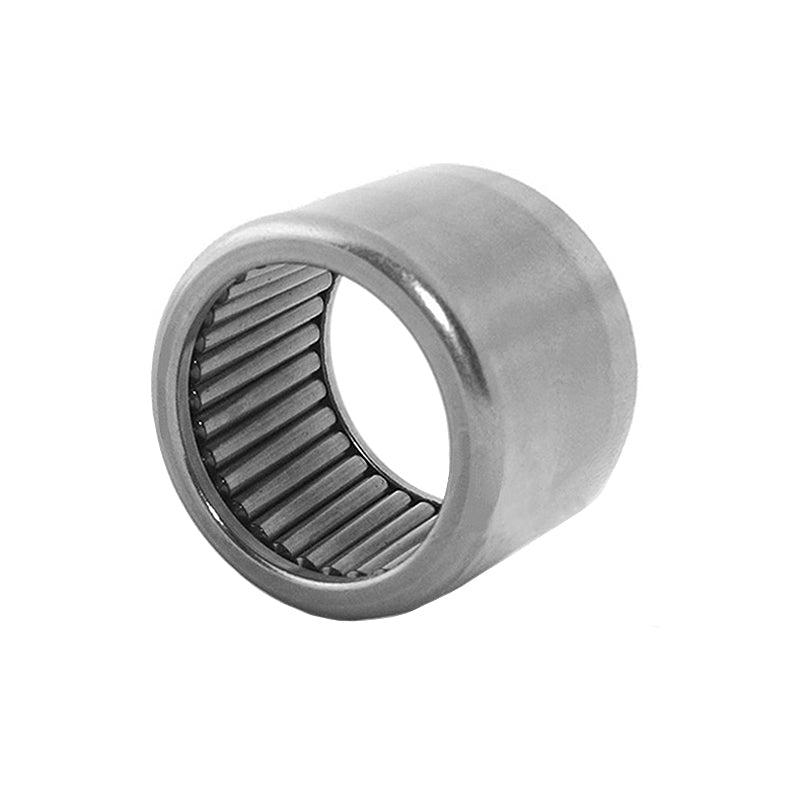

Major Brand B3010 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 1-7/8x2-1/4x5/8 inch - Allow 2-3 Days
Major Brand B3010 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 1-7/8x2-1/4x5/8 inch - Allow 2-3 Days
Out of stock
Share this product
Description
Description
Full Complement Needle Roller Bearings: Of similar construction to the common HK and TA series needle roller bearings but having no cage and twice the number of rollers occupying the same space to permit greater load carrying capacity. Often referred to as crowded roller construction. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 47.63mm = 1.875 (1-7/8) inch
- Outside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Width:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Inside Diameter | 47.63mm = 1.875 inch |
|---|---|
| Outside Diameter | 57.15mm = 2.25 inch |
| Width | 15.88mm = 0.625 inch |
| Dynamic load C | 33.6 kN |
| Static load Co | 67.6 kN |
| S max | 47.625mm = 1.875 inch |
| S min | 47.612mm = 1.8745 inch |
| H max | 57.163mm = 2.2505 inch |
| H min | 57.137mm = 2.2495 inch |
