SKU: B-3228

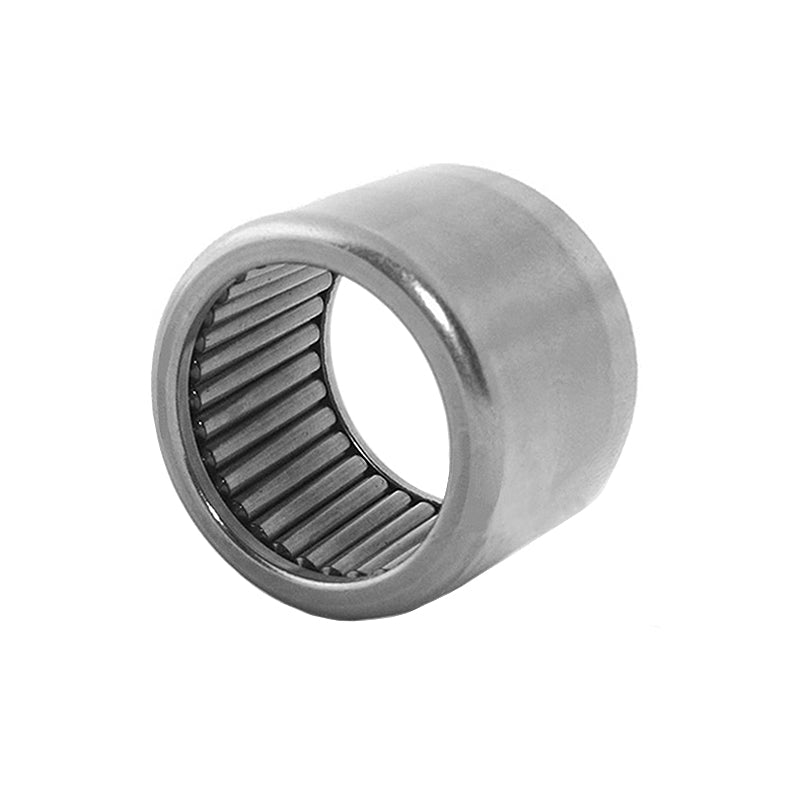

Major Brand B3228 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 2x2-3/8x1-3/4 inch - Allow 2-3 Days
Major Brand B3228 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 2x2-3/8x1-3/4 inch - Allow 2-3 Days
Out of stock
Share this product
Description
Description
Full Complement Needle Roller Bearings: Of similar construction to the common HK and TA series needle roller bearings but having no cage and twice the number of rollers occupying the same space to permit greater load carrying capacity. Often referred to as crowded roller construction. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 60.33mm = 2.375 (2-3/8) inch
- Width:
- 44.45mm = 1.75 (1-3/4) inch
Technical
Technical
| Inside Diameter | 50.8mm = 2 inch |
|---|---|
| Outside Diameter | 60.33mm = 2.375 inch |
| Width | 44.45mm = 1.75 inch |
| Dynamic load C | 97.4 kN |
| Static load Co | 273 kN |
| S max | 50.8mm = 2 inch |
| S min | 50.785mm = 1.9994 inch |
| H max | 60.338mm = 2.3755 inch |
| H min | 60.312mm = 2.3745 inch |
