SKU: B7000-E-T-P4S-DUL-FAG

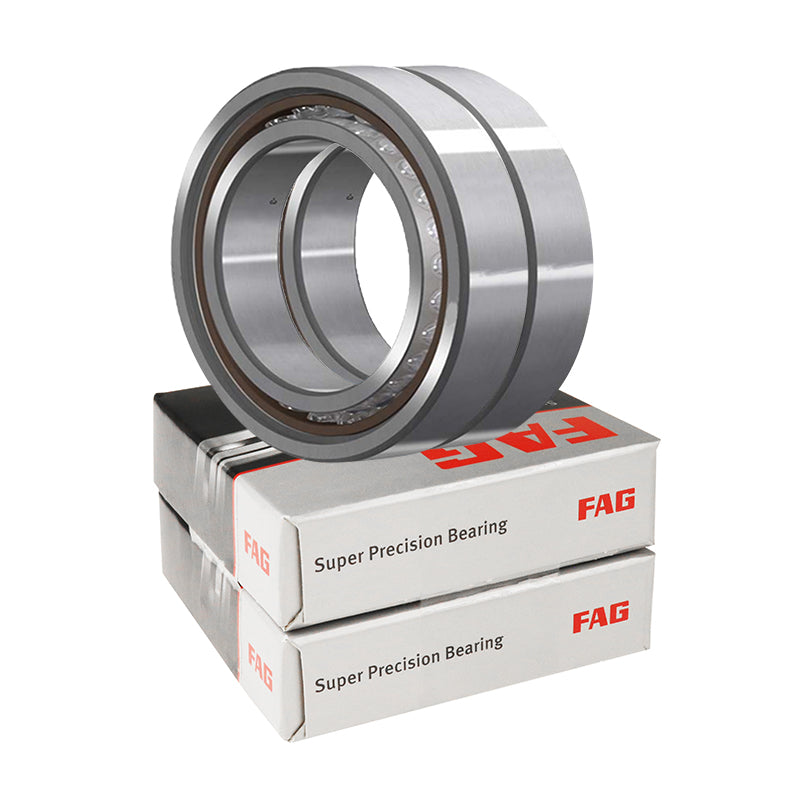

FAG B7000ETP4SDUL Super Precision Angular Contact Spindle Bearing 10x26x8mm (Set of 2)

Name: FAG B7000ETP4SDUL Super Precision Angular Contact Spindle Bearing 10x26x8mm (Set of 2)
Brand: FAG
SKU: B7000-E-T-P4S-DUL-FAG
Price: 300.94 USD
Availability: InStock

$300.94 ex VAT

Sale Sold out

In stock

Price Break

3+ $201.58

5+ $190.25

10+ $187.99

25+ $185.72

49+ $183.46

74+ $181.19

99+ $169.87

199+ $167.60

249+ $165.34

499+ $163.07

999+ $158.54

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: FAG - High Quality
Inside Diameter:: 10mm
Outside Diameter:: 26mm
Width:: 8mm
Seals / Shields:: None
Style:: Universal Matched Pair of Bearings
Contact Angle:: 40 Degree contact angle
Bearing Preload:: Light preload

Technical

---	Bearing dimensions
d	10mm
D	26mm
B	8mm
r<sub>s min</sub>	0.3mm
r<sub>1s min</sub>	0.3mm
---	Abutment dimensions
da<sub> min</sub>	14 mm
Da<sub> min</sub>	22mm
ra<sub> max</sub>	0.3mm
rb<sub> max</sub>	0.1mm
---	Speeds, weights and loads
E<sub>tk nominal</sub>	16.4 kN
C <sub>dynamic</sub>	4.05 kN
C<sub>o static</sub>	2 kN
Speed in grease	56000 rpm
Speed in oil	85000 rpm
Preloading force F<sub>v</sub> L	22 N
Preloading force F<sub>v</sub> M	100 N
Preloading force F<sub>v</sub> H	224 N
Unloading force K<sub>aE</sub> L	64 N
Unloading force K<sub>aE</sub> M	303 N
Unloading force K<sub>aE</sub> H	706 N
Axial rigidity C<sub>a</sub> L	27.9 N/μm
Axial rigidity C<sub>a</sub> M	49.6 N/μm
Axial rigidity C<sub>a</sub> H	69.4 N/μm
Weight	0.02kg
