SKU: B7011-E-T-P4S-DUL-FAG

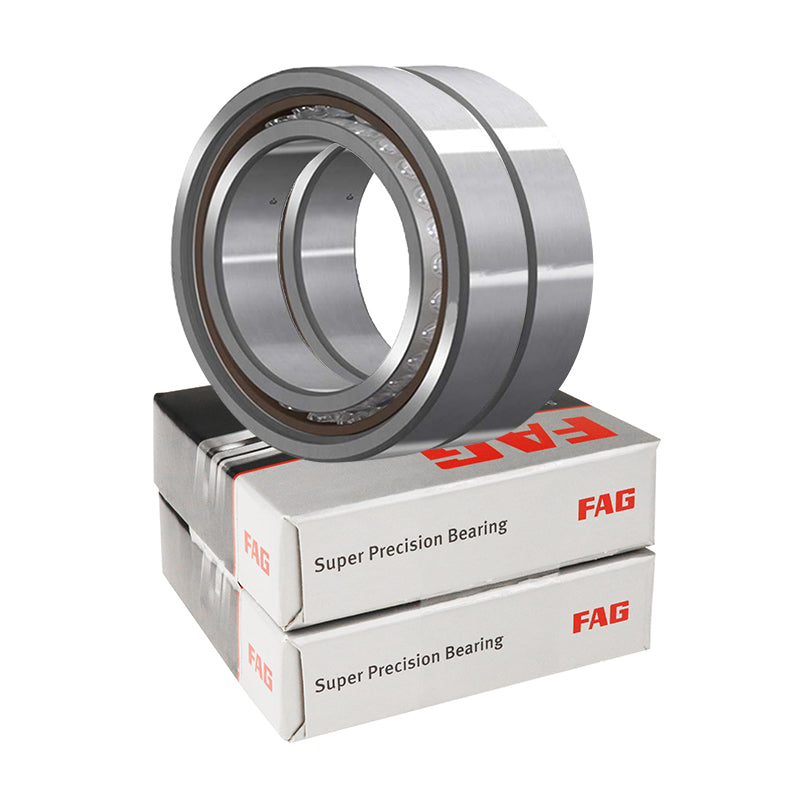

FAG B7011ETP4SDUL Super Precision Angular Contact Spindle Bearing 55x90x18mm (Set of 2)

Name: FAG B7011ETP4SDUL Super Precision Angular Contact Spindle Bearing 55x90x18mm (Set of 2)
Brand: FAG
SKU: B7011-E-T-P4S-DUL-FAG
Price: 544.19 USD
Availability: InStock

$544.19 ex VAT

Sale Sold out

In stock

Price Break

3+ $364.52

5+ $344.04

10+ $339.94

25+ $335.85

49+ $331.75

74+ $327.66

99+ $307.18

199+ $303.08

249+ $298.99

499+ $294.89

999+ $286.70

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: FAG - High Quality
Inside Diameter:: 55mm
Outside Diameter:: 90mm
Width:: 18mm
Seals / Shields:: None
Style:: Universal Matched Pair of Bearings
Contact Angle:: 40 Degree contact angle
Bearing Preload:: Light preload

Technical

---	Bearing dimensions
d	55mm
D	90mm
B	18mm
r<sub>s min</sub>	1.1mm
r<sub>1s min</sub>	1.1mm
---	Abutment dimensions
da<sub> min</sub>	62 mm
Da<sub> min</sub>	83mm
ra<sub> max</sub>	1mm
rb<sub> max</sub>	0.6mm
---	Speeds, weights and loads
E<sub>tk nominal</sub>	68.1 kN
C <sub>dynamic</sub>	36 kN
C<sub>o static</sub>	29 kN
Speed in grease	14000 rpm
Speed in oil	22000 rpm
Preloading force F<sub>v</sub> L	298 N
Preloading force F<sub>v</sub> M	1066 N
Preloading force F<sub>v</sub> H	2257 N
Unloading force K<sub>aE</sub> L	876 N
Unloading force K<sub>aE</sub> M	3243 N
Unloading force K<sub>aE</sub> H	7117 N
Axial rigidity C<sub>a</sub> L	142.4 N/μm
Axial rigidity C<sub>a</sub> M	231.6 N/μm
Axial rigidity C<sub>a</sub> H	316.4 N/μm
Weight	0.37kg
