SKU: B7012-E-T-P4S-DUL-FAG

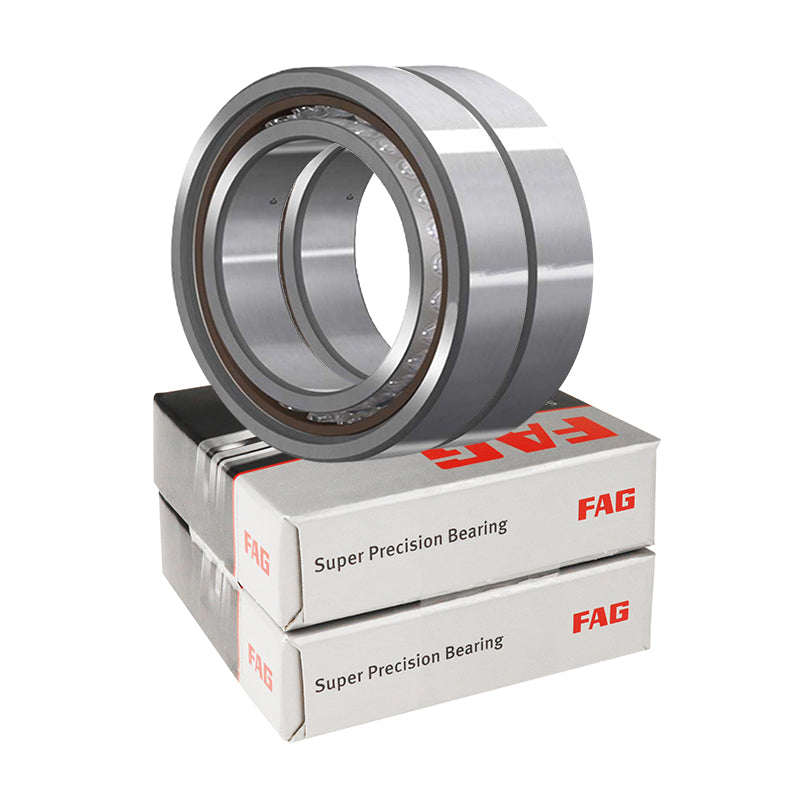

FAG B7012ETP4SDUL Super Precision Angular Contact Spindle Bearing 60x95x18mm (Set of 2)

Name: FAG B7012ETP4SDUL Super Precision Angular Contact Spindle Bearing 60x95x18mm (Set of 2)
Brand: FAG
SKU: B7012-E-T-P4S-DUL-FAG
Price: 600.84 USD
Availability: InStock

$600.84 ex VAT

Sale Sold out

In stock

Price Break

3+ $402.46

5+ $379.85

10+ $375.33

25+ $370.80

49+ $366.28

74+ $361.76

99+ $339.15

199+ $334.63

249+ $330.11

499+ $325.58

999+ $316.54

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: FAG - High Quality
Inside Diameter:: 60mm
Outside Diameter:: 95mm
Width:: 18mm
Seals / Shields:: None
Style:: Universal Matched Pair of Bearings
Contact Angle:: 40 Degree contact angle
Bearing Preload:: Light preload

Technical

---	Bearing dimensions
d	60mm
D	95mm
B	18mm
r<sub>s min</sub>	1.1mm
r<sub>1s min</sub>	1.1mm
---	Abutment dimensions
da<sub> min</sub>	67 mm
Da<sub> min</sub>	88mm
ra<sub> max</sub>	1mm
rb<sub> max</sub>	0.6mm
---	Speeds, weights and loads
E<sub>tk nominal</sub>	73.1 kN
C <sub>dynamic</sub>	36.5 kN
C<sub>o static</sub>	31.5 kN
Speed in grease	13000 rpm
Speed in oil	20000 rpm
Preloading force F<sub>v</sub> L	299 N
Preloading force F<sub>v</sub> M	1075 N
Preloading force F<sub>v</sub> H	2281 N
Unloading force K<sub>aE</sub> L	878 N
Unloading force K<sub>aE</sub> M	3263 N
Unloading force K<sub>aE</sub> H	7173 N
Axial rigidity C<sub>a</sub> L	147.9 N/μm
Axial rigidity C<sub>a</sub> M	240.4 N/μm
Axial rigidity C<sub>a</sub> H	328.4 N/μm
Weight	0.4kg
