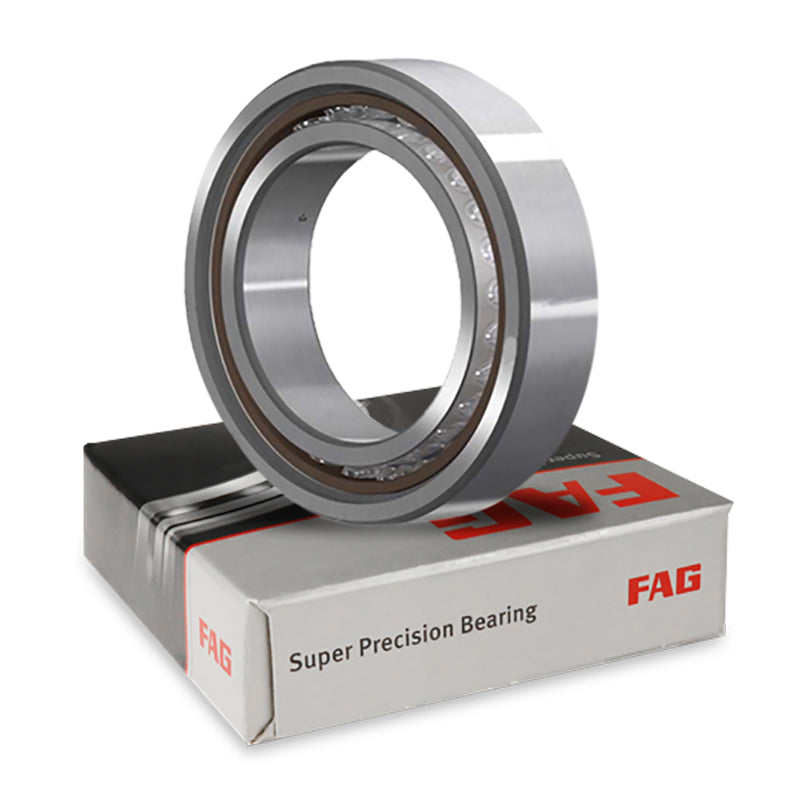

FAG B7020CTP4SUM Super Precision Angular Contact Spindle Bearing 100x150x24mm

Name: FAG B7020CTP4SUM Super Precision Angular Contact Spindle Bearing 100x150x24mm
Brand: FAG
SKU: B7020-C-T-P4S-UM-FAG
Price: 640.23 USD
Availability: InStock

$640.23 ex VAT

Sale Sold out

In stock

Price Break

3+ $428.85

5+ $404.75

10+ $399.94

25+ $395.12

49+ $390.30

74+ $385.48

99+ $361.39

199+ $356.57

249+ $351.75

499+ $346.93

999+ $337.30

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: FAG - High Quality
Inside Diameter:: 100mm
Outside Diameter:: 150mm
Width:: 24mm
Seals / Shields:: None
Style:: Single Universal Matchable Bearing
Bearing Preload:: Medium preload

Technical

---	Bearing dimensions
d	100mm
D	150mm
B	24mm
r<sub>s min</sub>	1.5mm
r<sub>1s min</sub>	1.5mm
---	Abutment dimensions
da<sub> min</sub>	110 mm
Da<sub> min</sub>	141mm
ra<sub> max</sub>	1.5mm
rb<sub> max</sub>	0.6mm
---	Speeds, weights and loads
E<sub>tk nominal</sub>	118.6 kN
C <sub>dynamic</sub>	81.5 kN
C<sub>o static</sub>	81.5 kN
Speed in grease	8500 rpm
Speed in oil	14000 rpm
Preloading force F<sub>v</sub> L	467 N
Preloading force F<sub>v</sub> M	1516 N
Preloading force F<sub>v</sub> H	3112 N
Unloading force K<sub>aE</sub> L	1450 N
Unloading force K<sub>aE</sub> M	5092 N
Unloading force K<sub>aE</sub> H	11199 N
Axial rigidity C<sub>a</sub> L	104.1 N/μm
Axial rigidity C<sub>a</sub> M	177.2 N/μm
Axial rigidity C<sub>a</sub> H	255.8 N/μm
Weight	1.26kg
